Stroker rebuild

autofetish · Post by **autofetish** » Thu Jul 31, 14 11:29 am

Having never built an engine this is a really great thread

Keep the pictures and details coming

Thank you

Carl · Post by **Carl** » Thu Jul 31, 14 11:29 am

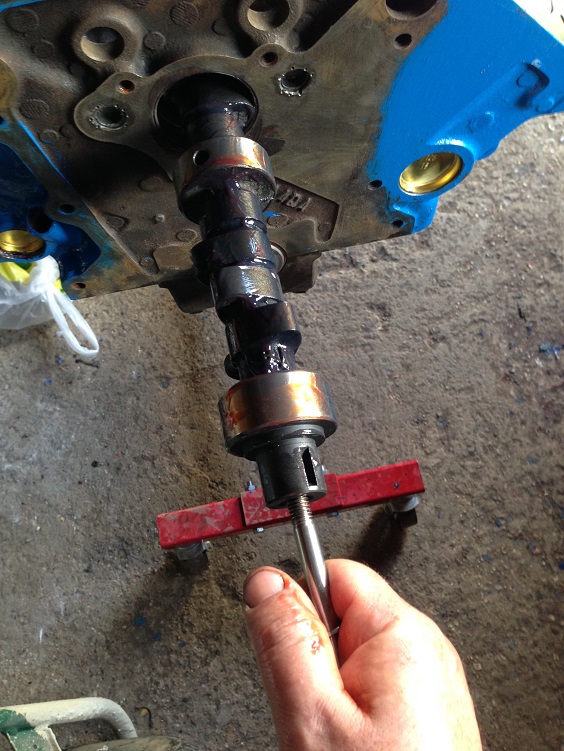

Next in went the new slightly bigger cam from .488/.491 .525/.525. Plenty of Lube coz you don't want to be shafted dry.

Carl · Post by **Carl** » Thu Jul 31, 14 11:34 am

As you can see by that time I had put new brass core plugs in, they too got a slap of the tacky stuff

Carl · Post by **Carl** » Thu Jul 31, 14 11:43 am

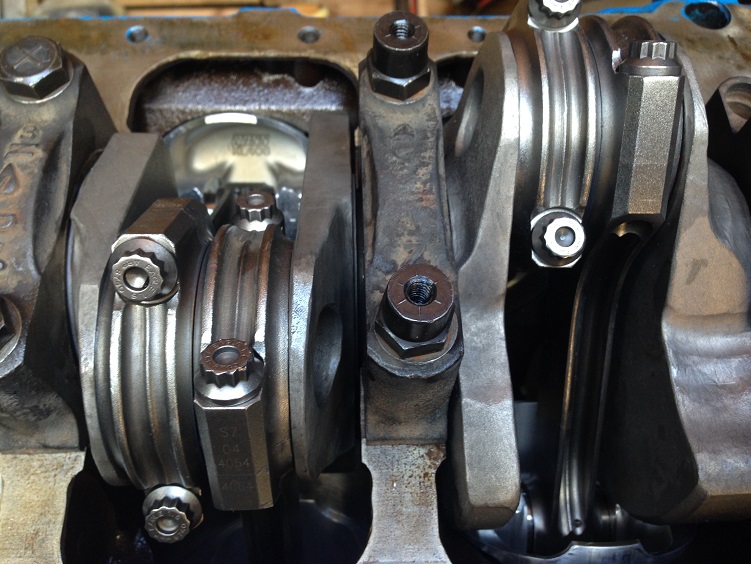

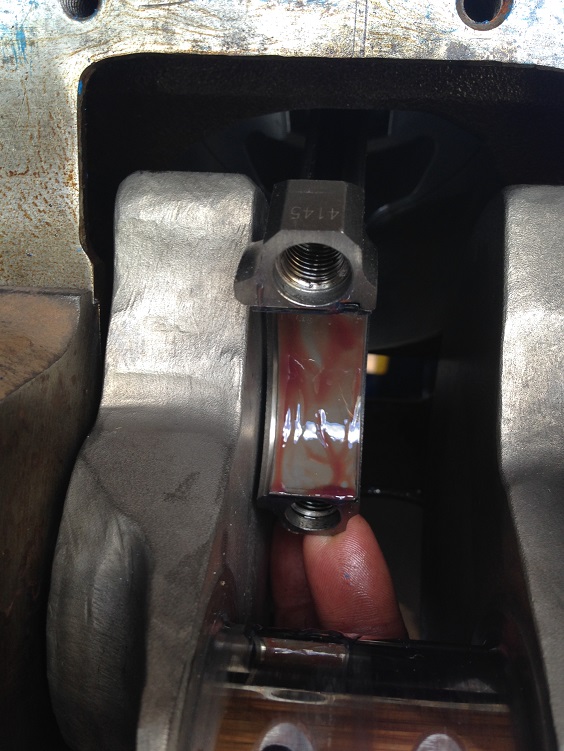

Almost forgot to mention the big ends also got a good dose of bearing muck, and also you can see all the wide rod shoulders are on the crank journal side as they should be.

Adrian Worman · Post by **Adrian Worman** » Thu Jul 31, 14 11:53 am

Don't forget to check thrust bearing clearance Carl, spesh important on a 4 speed

Carl · Post by **Carl** » Thu Jul 31, 14 11:57 am

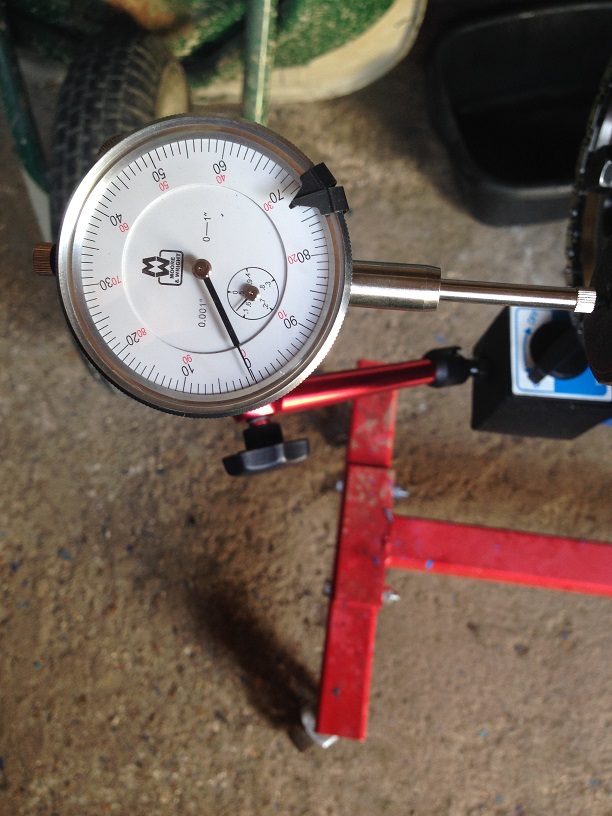

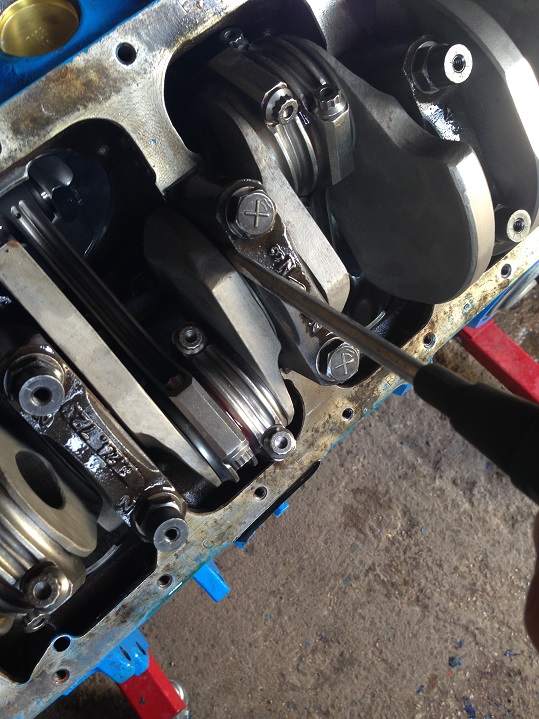

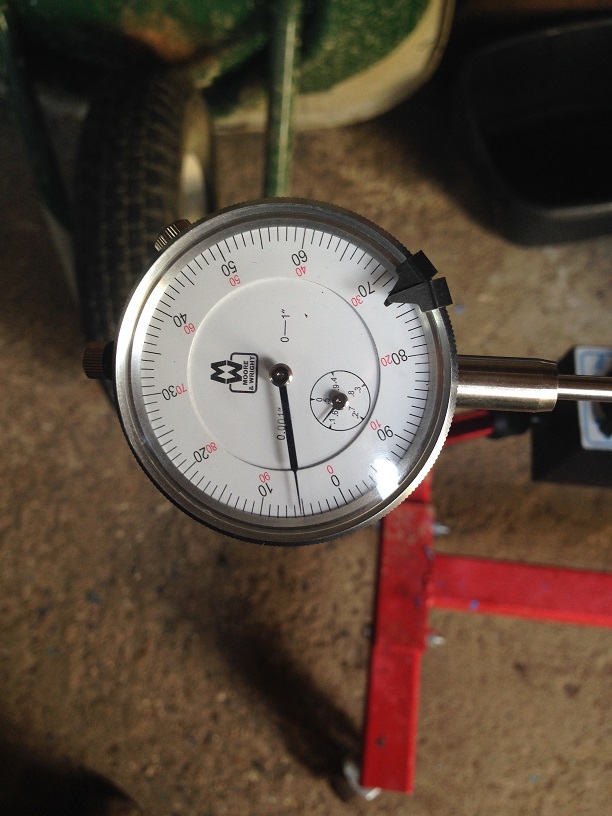

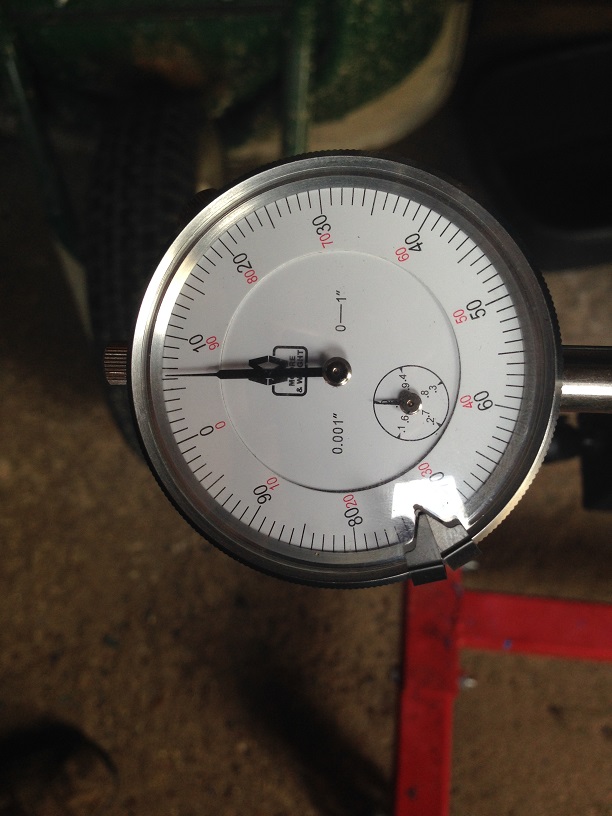

Crank shaft end float was measured too. Dial gauge was set up on to the end of the crank and zeroed, a screw driver placed between crank journal and centre cap to push crank forward, giving me a reading of 5 thou crank end float. I span the crank 180 degrees and repeated this time a reading of 6 thou, 1 thou deviation in the crank

Chrysler recommend 0.002-0.007 crank end play, so I am happy with that.

Carl · Post by **Carl** » Thu Jul 31, 14 12:00 pm

Adrian Worman wrote:Don't forget to check thrust bearing clearance Carl, spesh important on a 4 speed

Done Ade

Carl · Post by **Carl** » Thu Jul 31, 14 12:10 pm

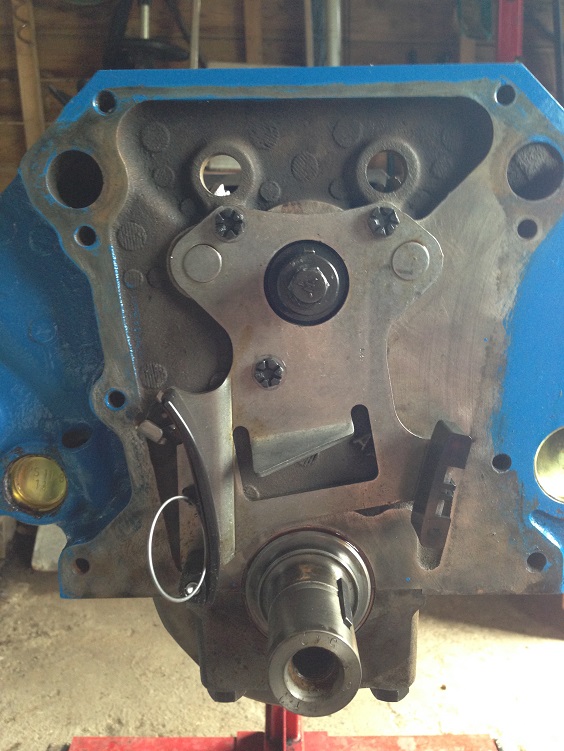

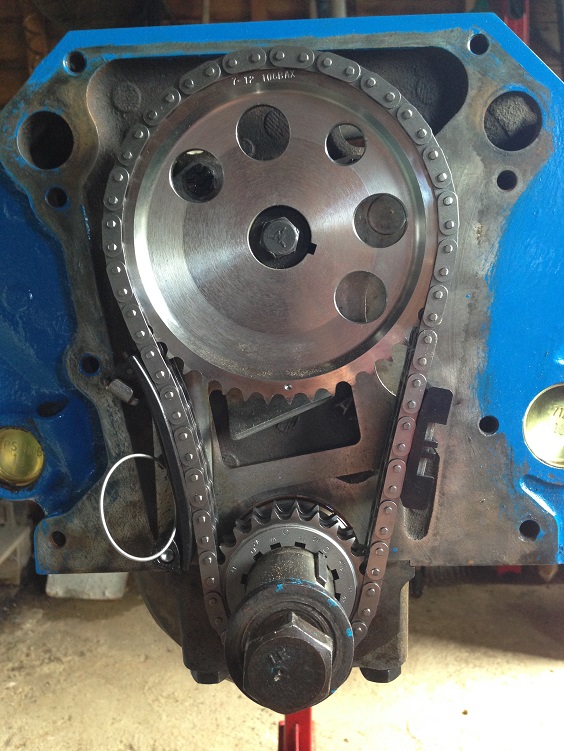

Time for the timing chain. I decided to put a tensioner in too as it also takes the place of the cam thrust plate. I also drilled out the 4th hole which the original thrust plate had but its not drilled out yet in pic

Dave-R · Post by **Dave-R** » Thu Jul 31, 14 12:17 pm

That's the way to do it.

Carl · Post by **Carl** » Thu Jul 31, 14 12:18 pm

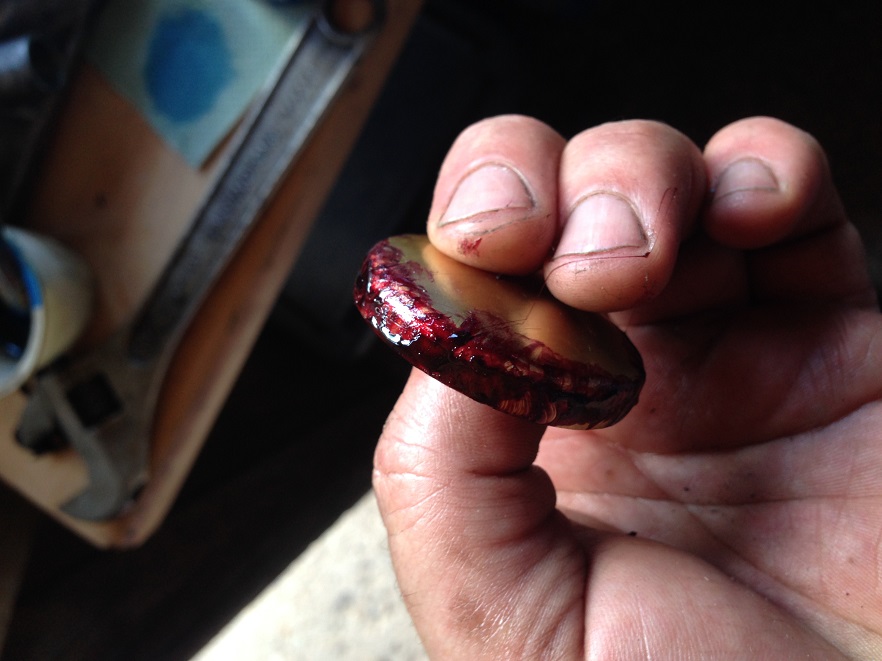

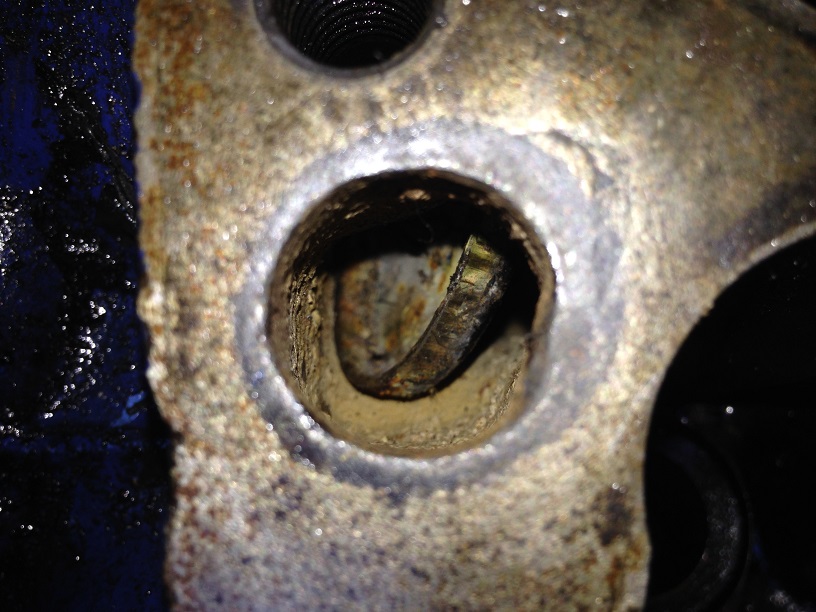

Whilst I was replacing the core plugs I came across this......An old core plug stuck in the top of the block, I had to tap it down to its correct hole to get it out. That wasn't the only one either, I found 2 more behind the 2 plugs at the very back of the engine, thankfully I got them all out.

GJUK · Post by **GJUK** » Thu Jul 31, 14 12:27 pm

Wow. You're correcting all the mistakes others have made big time.

Looks great though. Keep at it

Carl · Post by **Carl** » Thu Jul 31, 14 12:28 pm

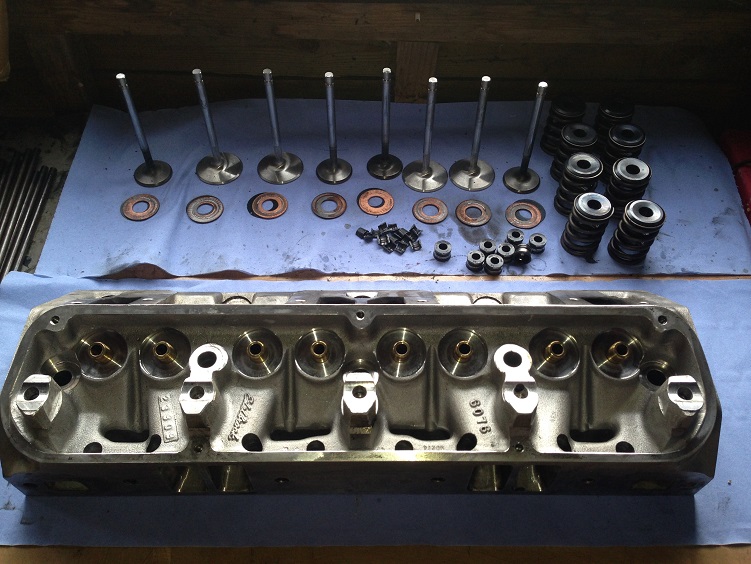

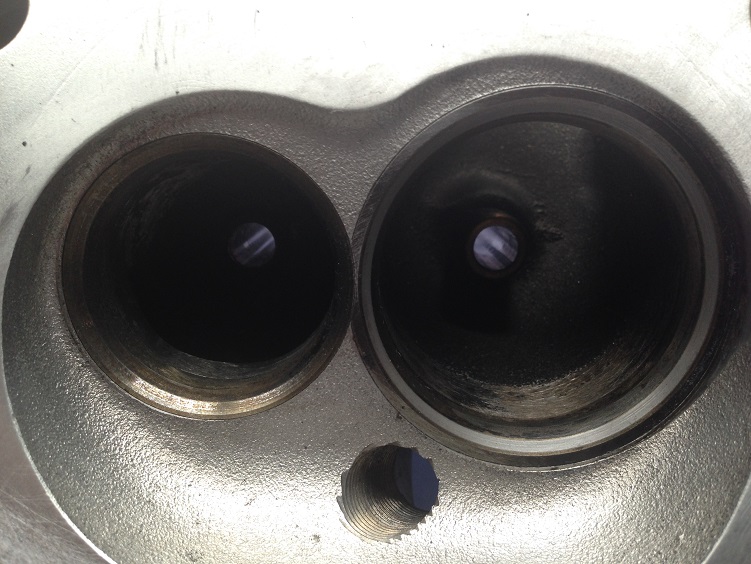

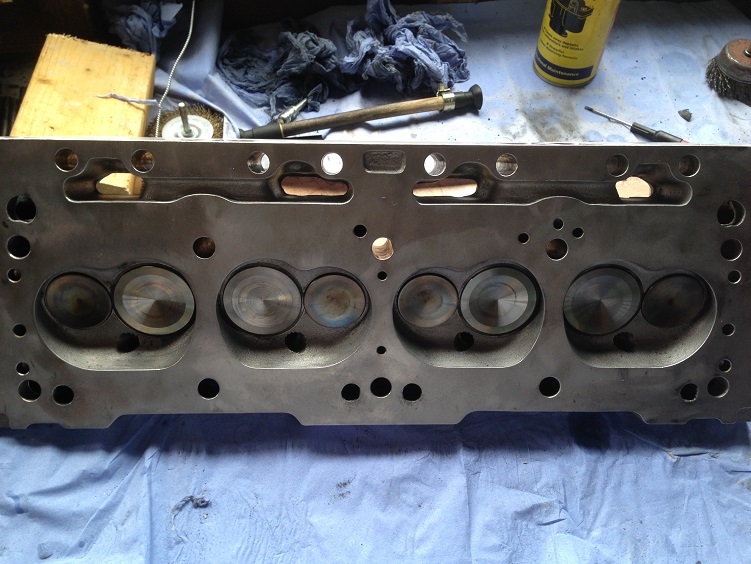

Time to turn my attention to the heads, heads stripped and given a good de-coke. You can see the nice shinny new inlet valves waiting to go in.

Carl · Post by **Carl** » Thu Jul 31, 14 12:39 pm

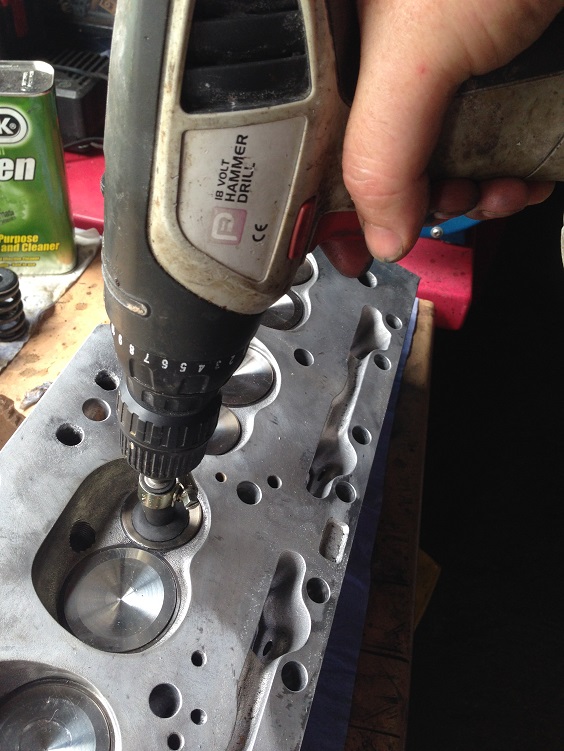

As I was replacing all the inlet valves I thought it worth while giving the exhaust valves a re lap, guides all ok so I left them alone, spring shims and seals replaced

Carl · Post by **Carl** » Thu Jul 31, 14 12:42 pm

GJUK wrote:Wow. You're correcting all the mistakes others have made big time.

Looks great though. Keep at it

Only way to do it Jon

Thanks for the kind comment

Dave81 · Post by **Dave81** » Thu Jul 31, 14 12:44 pm

Impressive work mate!!!

Should give you added confidence when you take it out for the first time that its A okay!!!!
