Nige's 70 Challenger R/T

Use this forum for all your builds in progress.

Moderator: Moderators

Post Reply
nigeltaylor
Posts: 59
Joined: Thu Nov 28, 13 10:06 am
Location: Southport

Post by nigeltaylor »

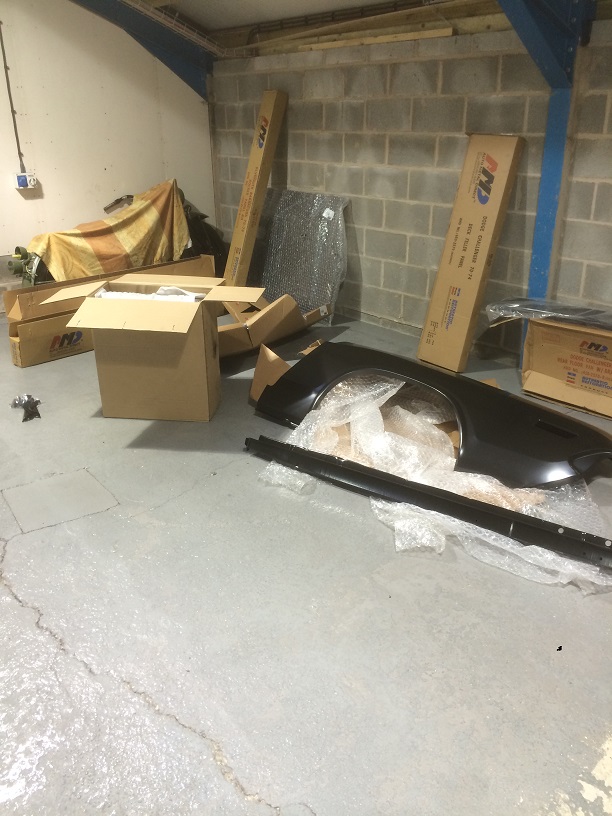

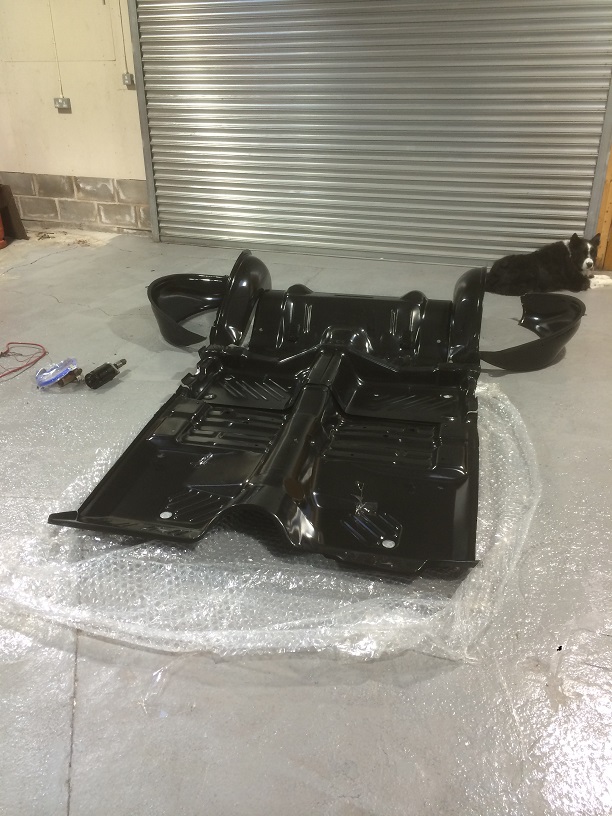

A little more progress. My sheet metal has arrived from AMD, thank you to Ron at STS imports for providing help with the shipping!

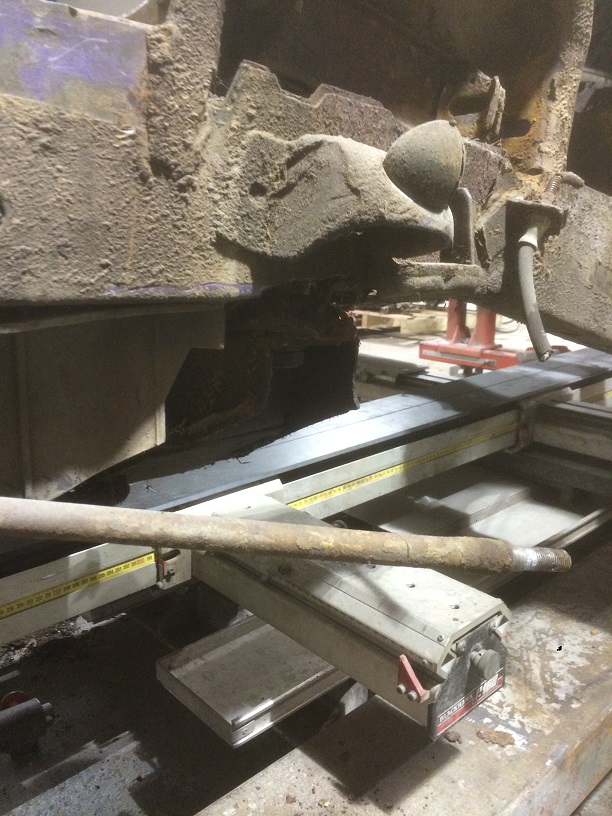

The Chally is now up on a chassis jig and the front floor is out, will hopefully be measuring it all up today from the points that are still there!
Attachments
Top
nigeltaylor
Posts: 59
Joined: Thu Nov 28, 13 10:06 am
Location: Southport

Post by nigeltaylor »

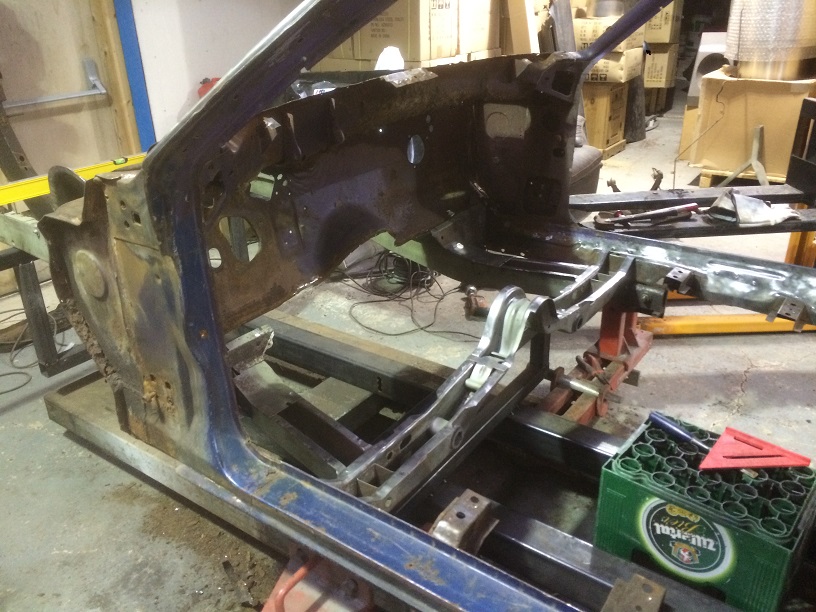

chassis jig
Attachments
Top
User avatar
TW71
Posts: 1215
Joined: Wed Jun 25, 08 6:00 pm
Location: Bedfordshire

Post by TW71 »

Great Stuff Nige.

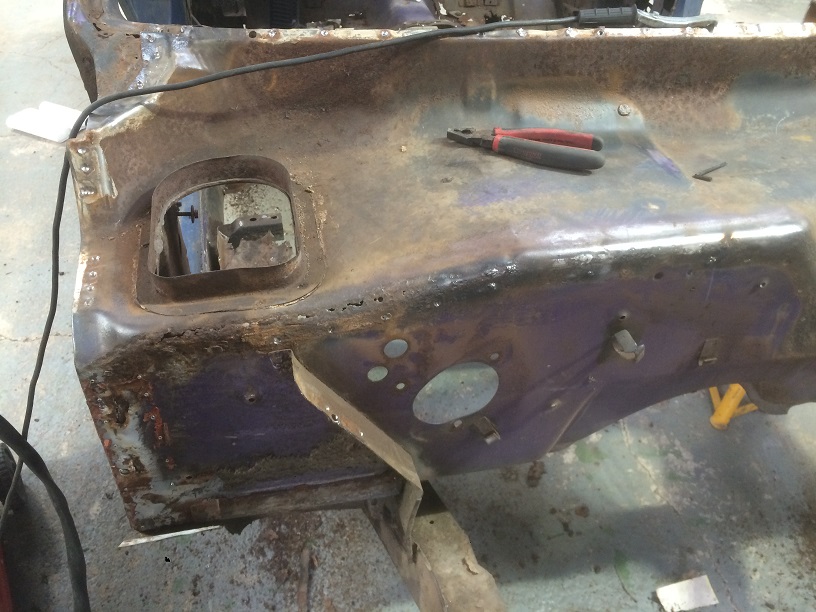

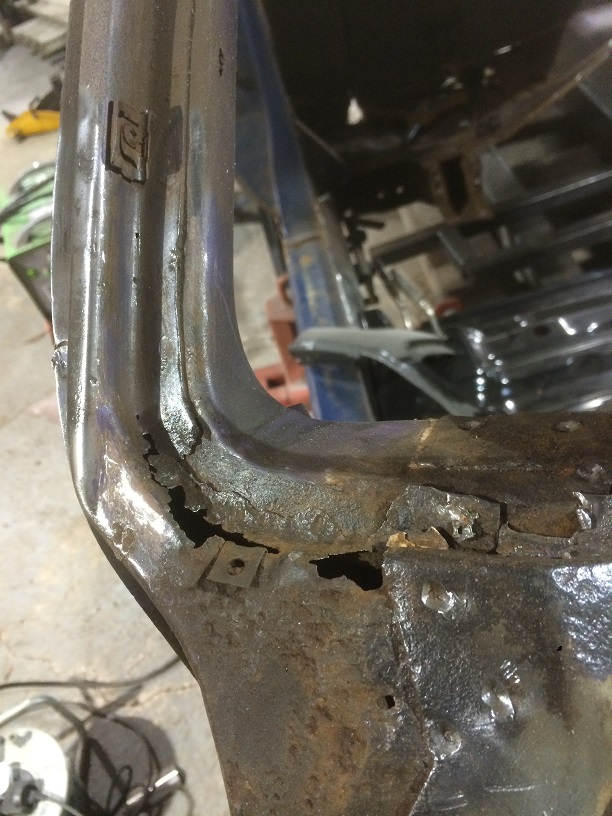

Are you going to cut out those rust holes in the firewall (1st pic)on the bend and replating out of interest, it looks too thin to weld the holes shut?



Tim :thumbright:
Top
nigeltaylor
Posts: 59
Joined: Thu Nov 28, 13 10:06 am
Location: Southport

Post by nigeltaylor »

Hi Tim, yes ill be cutting a rectangle out and making a new piece for in there at some point.
Top
nigeltaylor
Posts: 59
Joined: Thu Nov 28, 13 10:06 am
Location: Southport

Post by nigeltaylor »

Too late to turn back now!
Attachments
Top
User avatar
db
Posts: 8368
Joined: Sun Apr 18, 04 10:50 pm
Location: Paul McQueen , N Wales

Post by db »

Wow, scary stuff!! Good luck :thumbright:
No-one will believe you...
Top
User avatar
Bryan
Posts: 972
Joined: Sun Apr 18, 04 11:27 pm
Location: Woking, Surrey

Post by Bryan »

nigeltaylor wrote:Too late to turn back now!
The dog thinks so too.
1968 Ford Fairlane 500 Wimbledon White. Currently a 302 auto but to be 410 4 speed.
Top
User avatar
autofetish
Posts: 5599
Joined: Sat May 21, 11 6:43 am

Post by autofetish »

Great stuff

I would put a set of chassis connectors in while your there if you intend on putting any real power in it

You can get lazer cut ones to match to shape of floor from machiniin racing
The closer you are to death the more alive you are
Top
User avatar
RobTwin
Posts: 13848
Joined: Thu Nov 24, 05 5:05 pm
Location: just north of Watford

Post by RobTwin »

autofetish wrote:Great stuff

I would put a set of chassis connectors in while your there if you intend on putting any real power in it

You can get lazer cut ones to match to shape of floor from machiniin racing


Who? :scratch:


Presume you mean Mancini, but I thought I'd check in case there's someone else... :read2: :D
Top
User avatar
autofetish
Posts: 5599
Joined: Sat May 21, 11 6:43 am

Post by autofetish »

Yeh that's it sorry was a woke up on hotel floor with mouth like gandees flip flops post :oops:
The closer you are to death the more alive you are
Top
User avatar
drewcrane
Posts: 4084
Joined: Tue Oct 13, 09 10:02 pm
Location: Denver,Colorado USA
Contact:
Contact drewcrane

Post by drewcrane »

Wow you really have a project there, looking good ,I bet you are tired of drilling spot welds :roll: here is another company that has lazer cut sub frame connectors.

http://xvengineering.com/collections/all
Top
User avatar
RobTwin
Posts: 13848
Joined: Thu Nov 24, 05 5:05 pm
Location: just north of Watford

Post by RobTwin »

autofetish wrote:Yeh that's it sorry was a woke up on hotel floor with mouth like gandees flip flops post :oops:

:drunken:

:thumbright:
Top
nigeltaylor
Posts: 59
Joined: Thu Nov 28, 13 10:06 am
Location: Southport

Post by nigeltaylor »

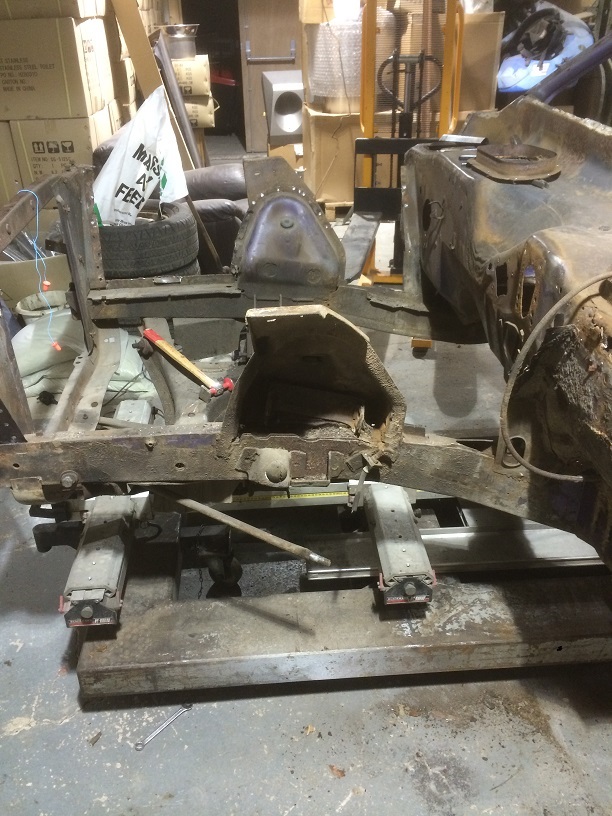

Quite a lot more progress on the Challenger, old frame rails and cross member are out, the K frame came out with the bottom part of the frame rail, not what I expected.
Attachments
Test fit of replacement frame rails and cross member, old one cam out with some of the inner sill so they have been cut and patched.
Test fit of replacement frame rails and cross member, old one cam out with some of the inner sill so they have been cut and patched.
replacement test fit
replacement test fit
rusty window lower corner
rusty window lower corner
Trying to undo the bolt and it came off with the underside of the frame rail!
Trying to undo the bolt and it came off with the underside of the frame rail!
Top
nigeltaylor
Posts: 59
Joined: Thu Nov 28, 13 10:06 am
Location: Southport

Post by nigeltaylor »

more rust and repair
Attachments

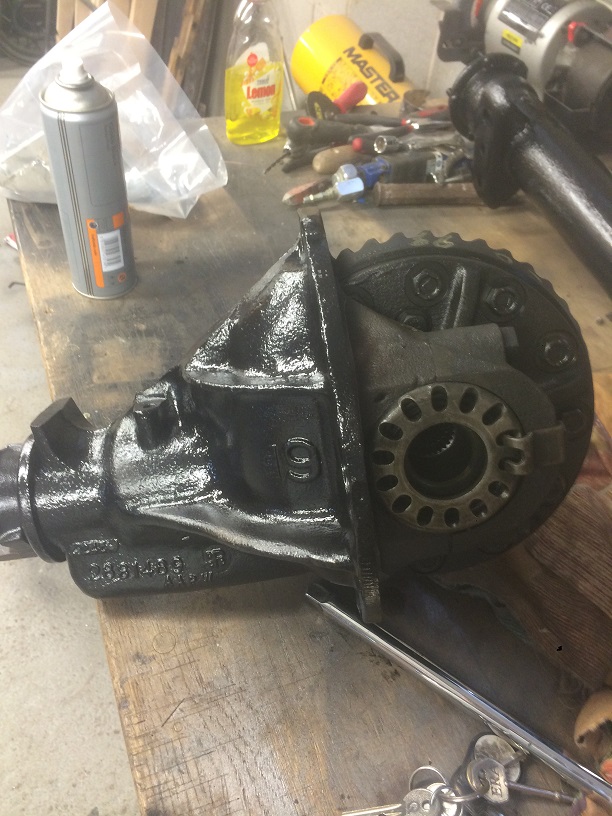

diff back from being checked, painted with two coats of rust inhibitor and black epoxy, ready to go back into the newly painted housing
diff back from being checked, painted with two coats of rust inhibitor and black epoxy, ready to go back into the newly painted housing
not sure what used to live in the old chassis!
not sure what used to live in the old chassis!

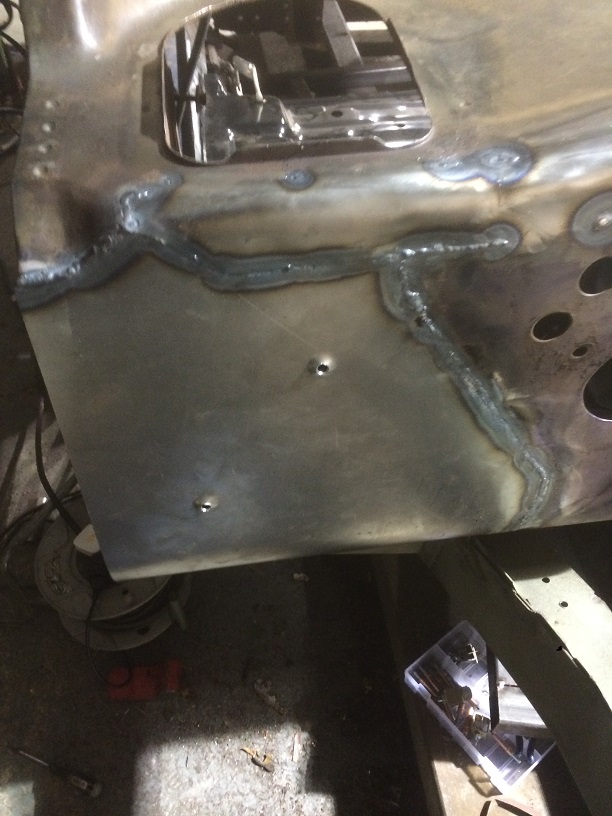

nice new metal
nice new metal

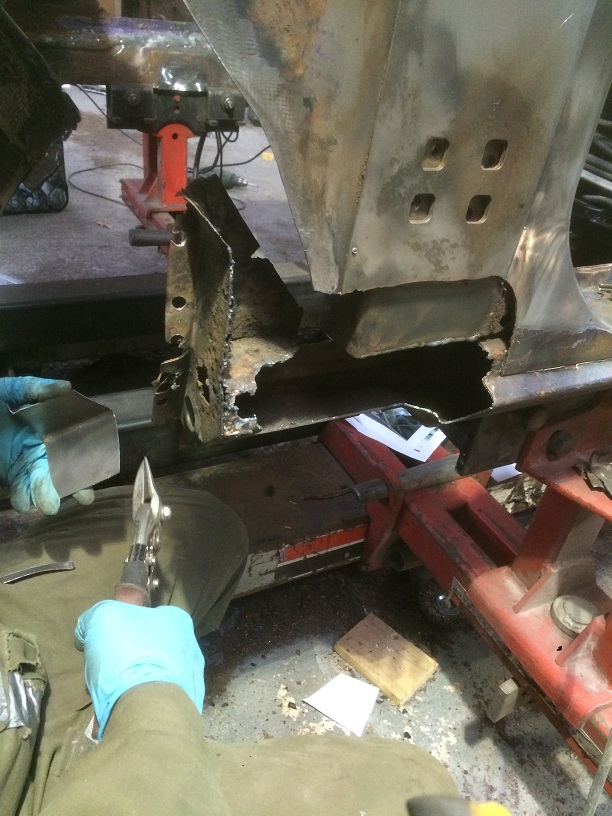

not much left down under the clutch pedal, rocker panel has been cut and repaired, inner door support has also been cut out and repaired with 3mm plate
not much left down under the clutch pedal, rocker panel has been cut and repaired, inner door support has also been cut out and repaired with 3mm plate
Top
nigeltaylor
Posts: 59
Joined: Thu Nov 28, 13 10:06 am
Location: Southport

Post by nigeltaylor »

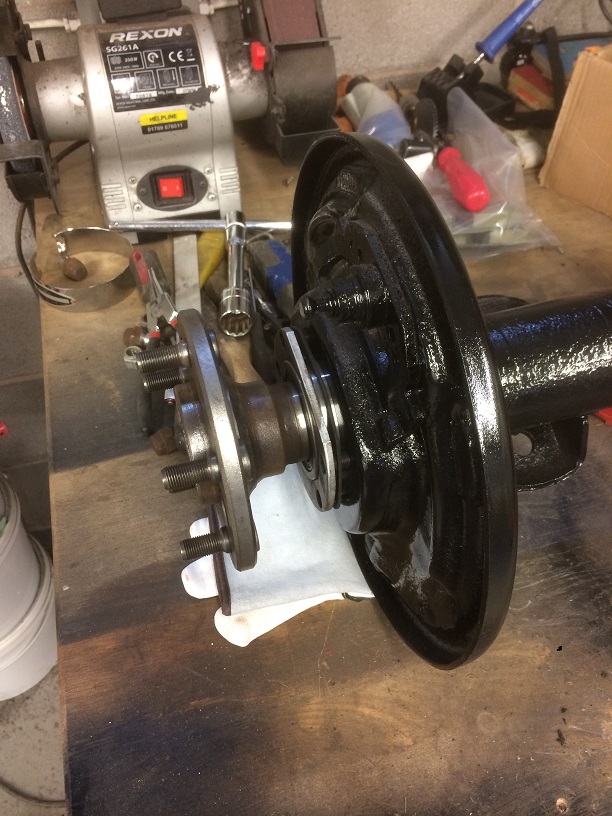

last one for now, new Green bearings installed and hubs cleaned up, threads chased, except the ones which go the other way as I don't have the right die for them!
Attachments
Top
