Anton's 68 Charger - 2012 Update

Jon Connolly · Post by **Jon Connolly** » Sat Apr 17, 10 10:09 pm

Nice one Anton

Looks like another quick smallblock`s coming out

What conn rods are those ? look familiar

ANTON · Post by **ANTON** » Sun Apr 18, 10 7:32 am

they are the ones Bacca got off you and then I brought them off him. I also had a set of bushed small block rods which I gave to Bacca in trade for a good block.

nick500 · Post by **nick500** » Sun Apr 18, 10 10:46 am

Try and get some brass freezer plugs, the metal ones are rubbish.

ANTON · Post by **ANTON** » Sun Apr 25, 10 9:35 pm

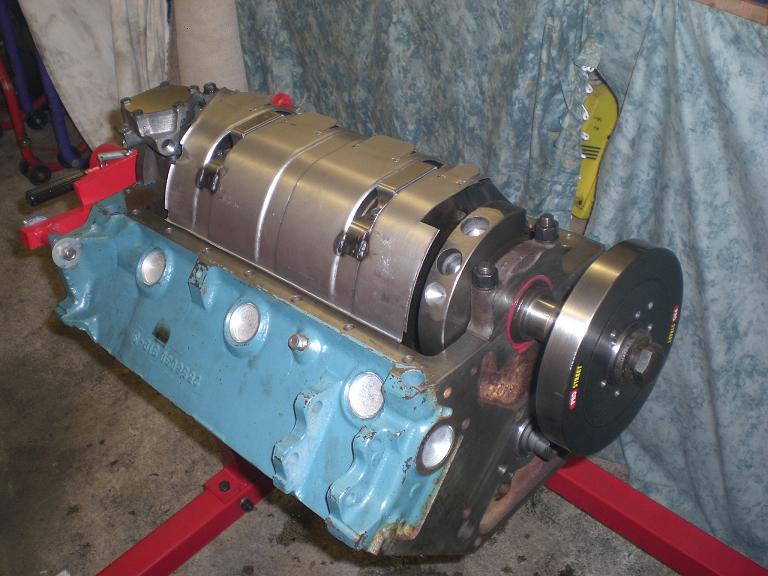

I managed to get in the garage this morning and managed to fit the cam, crank,pistons,rod and windage tray with oil pump so things are moving on well.

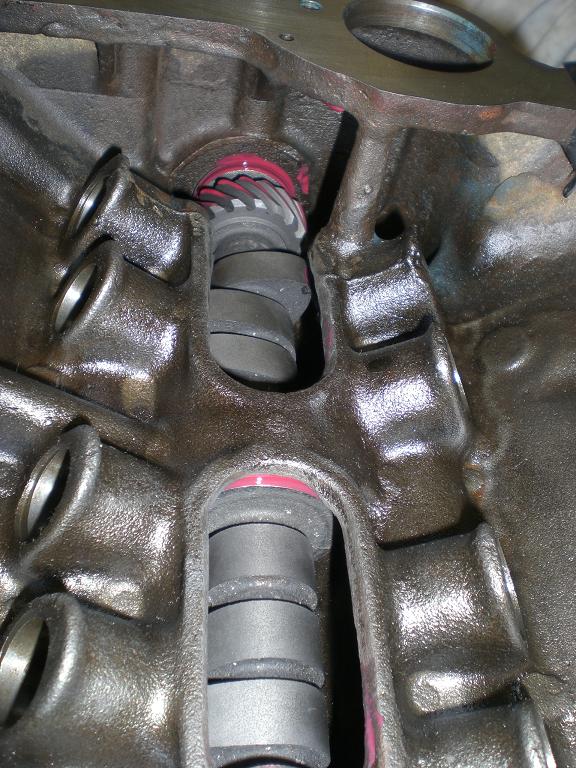

the cam was a bit tight so I used 2000 grit wet and dry to ease the bearing and now it spins well.

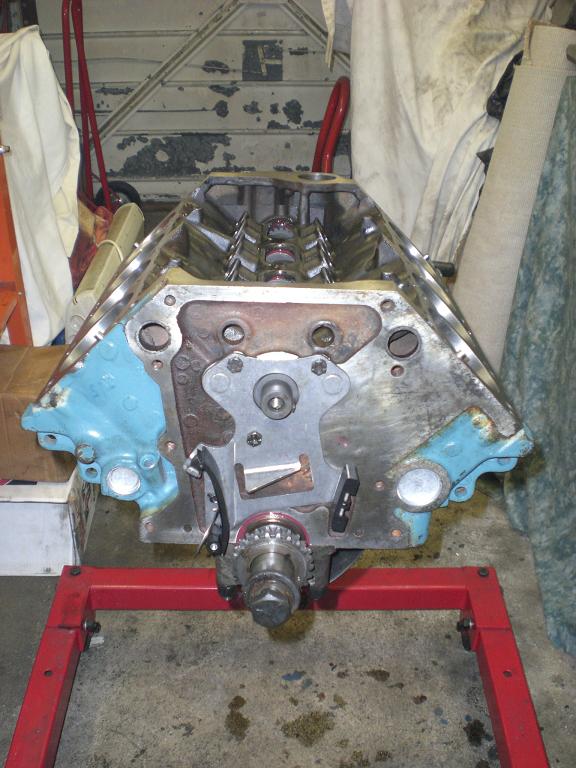

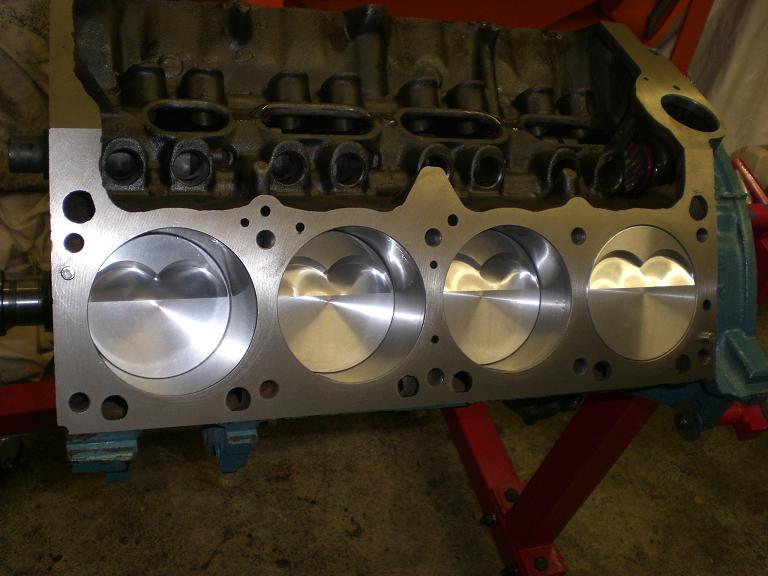

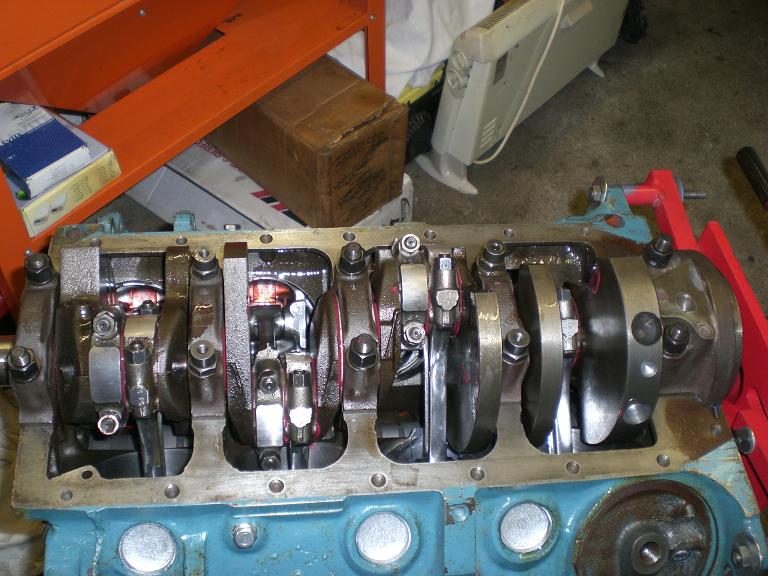

I fitted the main seal and the crank and once that was all torqued down i started to install all the pistons and rods and once that was complete I had to fit the oil pump and found it fouled the main studs so I had to cut the main stud thread down till it cleared. I was trying to install the timing chain but ran short of time so this is as far as I got today.

ANTON · Post by **ANTON** » Sun Apr 25, 10 9:37 pm

Jon Connolly · Post by **Jon Connolly** » Sun Apr 25, 10 10:31 pm

Anton

Looks good

What`s the manufacturer of that oil slinger plate / timing chain ? I don`t recognise it

ANTON · Post by **ANTON** » Mon Apr 26, 10 7:04 am

Hi Jon

The oil plate is from macini racing and the timing gear is comp cams double roller set up.

Kev · Post by **Kev** » Mon Apr 26, 10 8:13 am

Hello Fella! Progressing well.

That bottom cam thrust plate bolt HAS got a hole in it, eh? (Just checking

)

ANTON · Post by **ANTON** » Mon Apr 26, 10 9:43 pm

Kev wrote:Hello Fella! Progressing well. That bottom cam thrust plate bolt HAS got a hole in it, eh? (Just checking )

Yes Kev it does have a hole in it. By the way Kev I think you need a new MMA t-shirt as the one you a wearing with Matt is very faded!!

steveo · Post by **steveo** » Thu Apr 29, 10 8:40 pm

looking good Anton , keep the pictures coming ! love looking at this sort of stuff

Anonymous · Post by **Anonymous** » Fri Apr 30, 10 9:43 pm

Sweet Anton!

That is one nice looking Motor!
400 horses easy peasy?
What cam you runnin there?

Keep up the good work, bacca.

Anonymous · Post by **Anonymous** » Sat May 01, 10 10:59 pm

Do you recognise the block as well Jon?
Its well shiny inside!!!
One of the cleanest water-jackets I've ever seen!

Bacca

Jon Connolly · Post by **Jon Connolly** » Sat May 01, 10 11:08 pm

yep

gonna be having another sb clearout soon ( 360 + 0.030 block, 318 std + 904 trans etc etc ) ... gonna go after market block

Nice work Anton

Anonymous · Post by **Anonymous** » Sun May 09, 10 8:35 am

Kev you need a new AVATAR!

That old one still makes me feel queeesy

Are you bored with OZ yet?
Whats the thinking on these small-blocks DOWN UNDER???

Can we affiliate OZ mopes and sponsor the fastest OZ Mope to race at the Nats?

Keep well fella and see you Friday Anton!

Bacca.

Anonymous · Post by **Anonymous** » Fri May 14, 10 8:36 am

Hi Anton,

How's this for valve and sparkplug deshrouding for 340/360 heads?

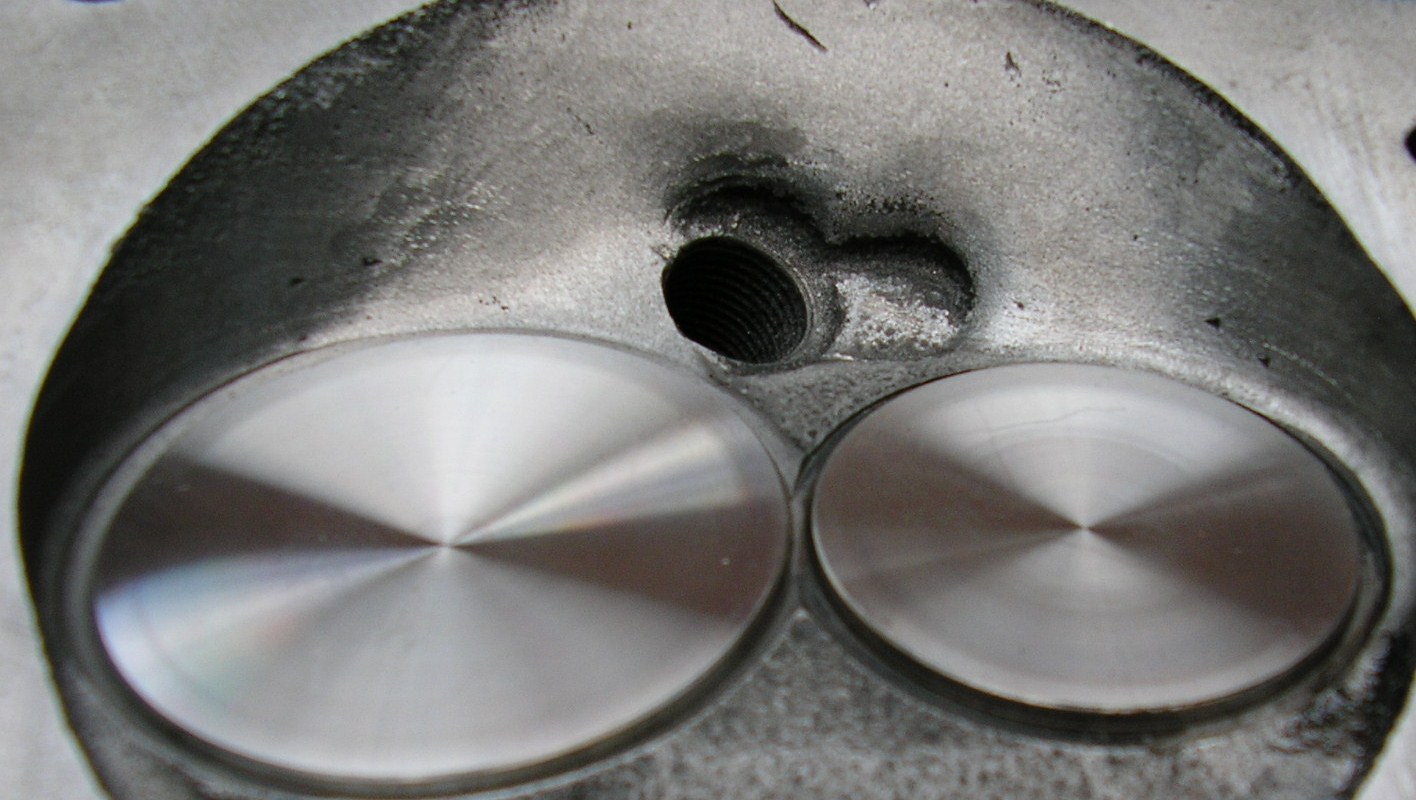

Second piccy has the Ferrera Nailhead valves to up the compression.

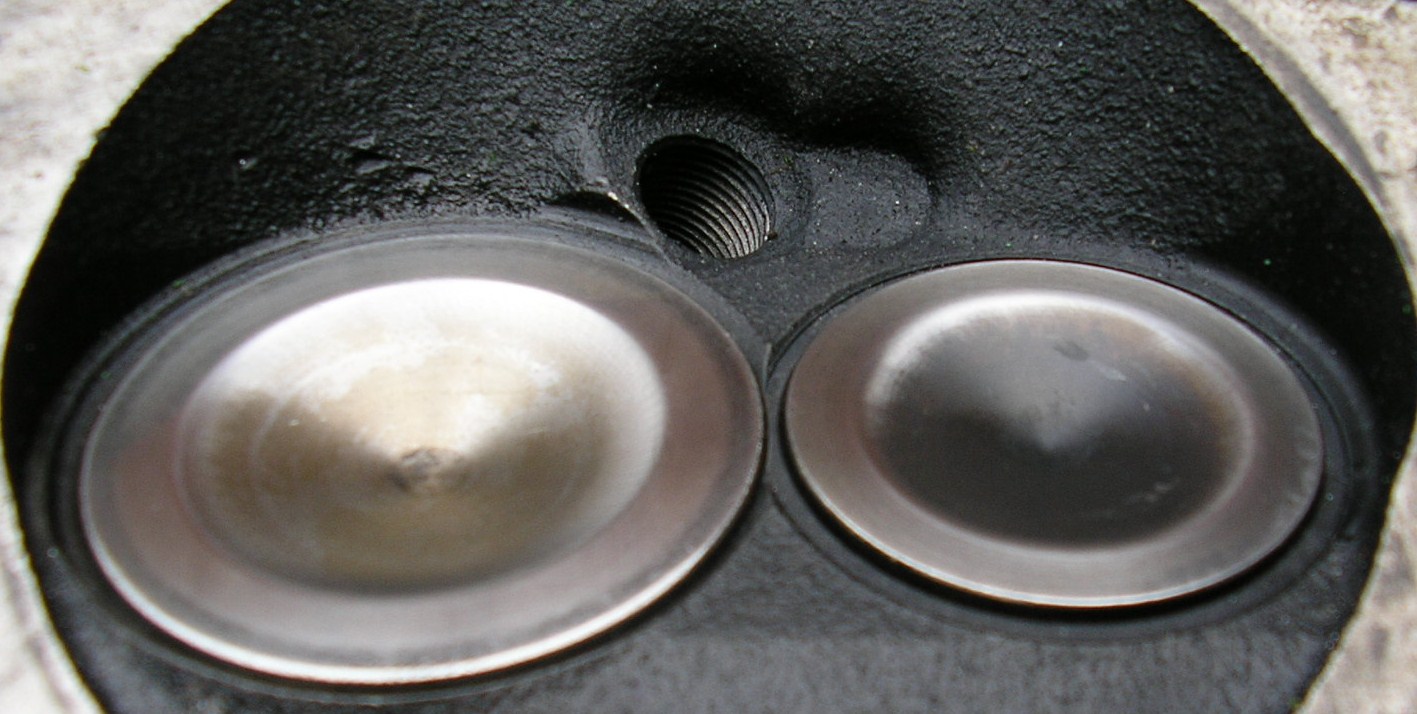

First piccy shows stock-chamber with stock 2.02's with dishheads.

Bacca.
