1989 Daytona tube chassis race car

Guy · Post by **Guy** » Wed Sep 12, 12 10:47 pm

So will it be ready for the HRD's then Jon

Jon Connolly · Post by **Jon Connolly** » Thu Sep 13, 12 8:23 pm

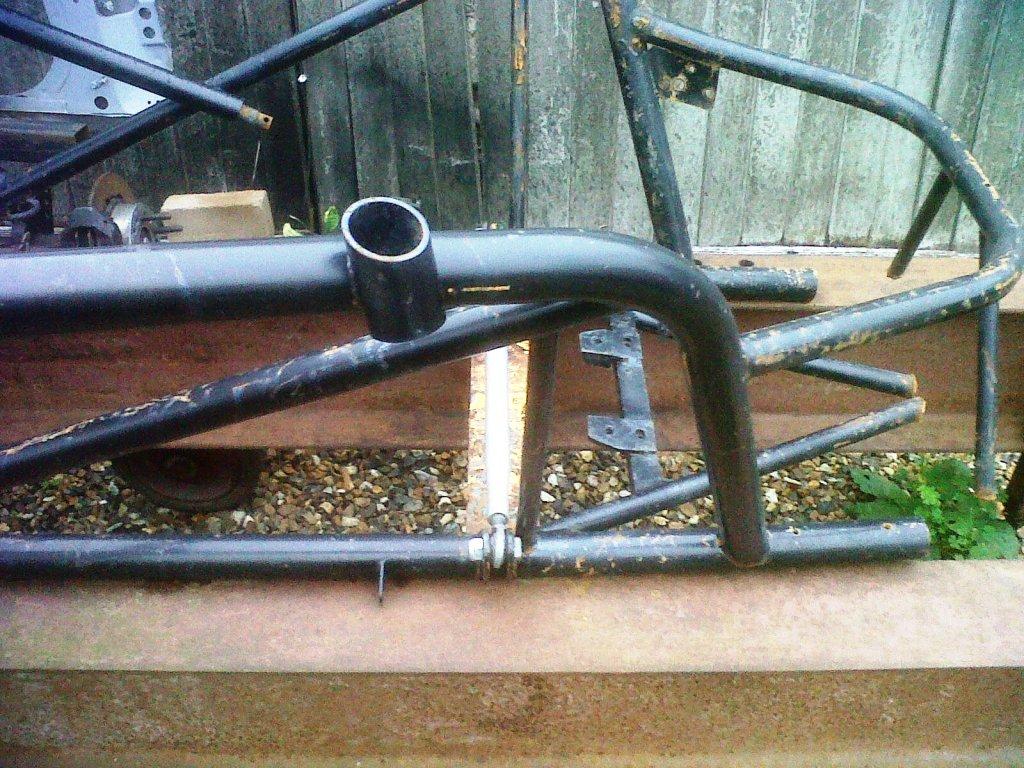

The biggest bit of damage is on the driver side main rail around the motor mount .. tube is bent upwards .. hard to see in the photo

The front corners are damaged too but these will be chopped out

The chassis and cage behind the firewall is dead square and level

AllKiller · Post by **AllKiller** » Fri Sep 14, 12 4:33 pm

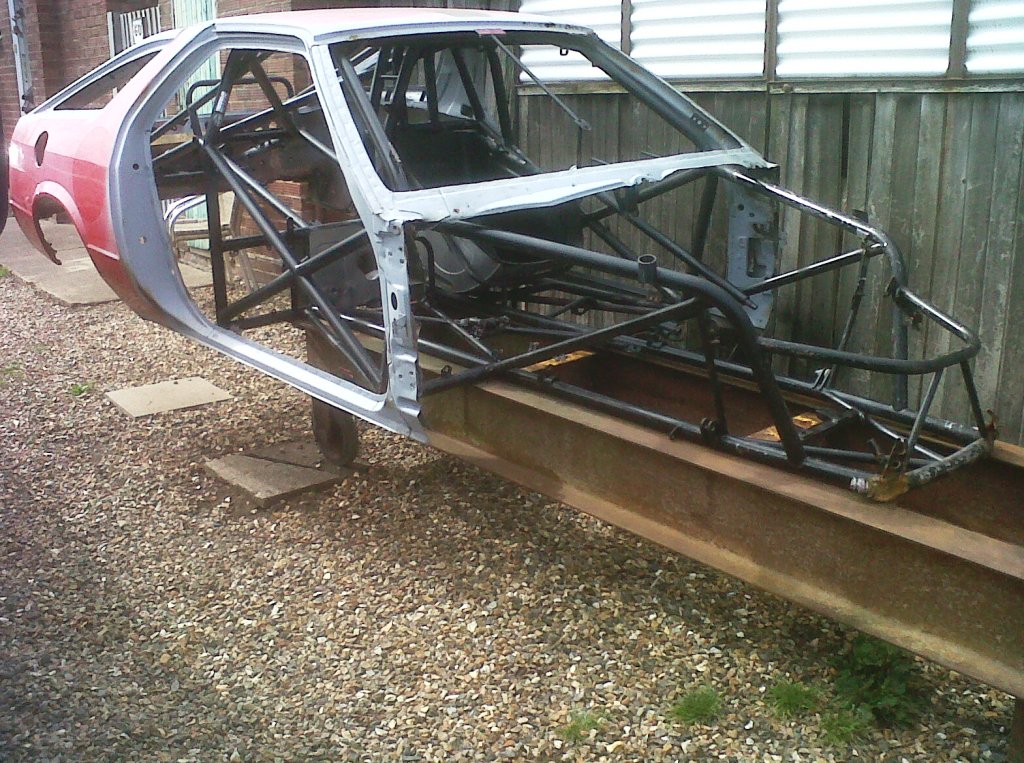

Now that does look the Nuts Jon....great fit with the chassis, cant wait to see it rolling.

Are you going to paint it like the Mopar shop car of Darrell Aldermann

Id put my name down for that rolling

db · Post by db » Fri Sep 14, 12 4:44 pm

Looking great Jon. That bend won't be hard to get out, especially with your 'jig'

Pete.S · Post by **Pete.S** » Wed Sep 19, 12 4:34 pm

looks good. is that i beam rolling frame going to be avalible?

Jon Connolly · Post by **Jon Connolly** » Wed Sep 19, 12 4:43 pm

Thanks Pete.s .. could be ? but depends what you want it for and how long ??

Pete.S · Post by **Pete.S** » Thu Sep 20, 12 10:20 am

Lol forever as a purchase...

Jon Connolly · Post by **Jon Connolly** » Mon Nov 26, 12 10:42 am

Been really busy with " real " work lately so haven`t done much carwise

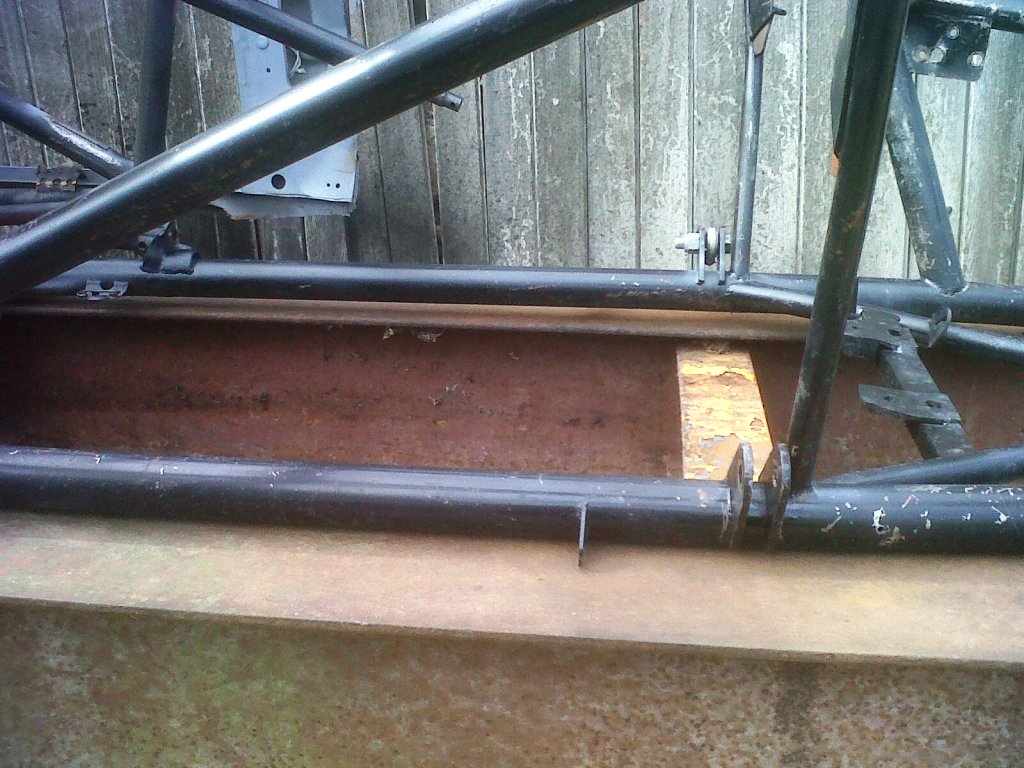

Nose has been cut to allow bottom rails to be pulled straight ( which they now are ). Needs a bit more pushing and pulling before the front section is rebuilt to suit the new body pick ups

autofetish · Post by **autofetish** » Mon Nov 26, 12 11:07 am

gone be great

Jon Connolly · Post by **Jon Connolly** » Wed Jan 02, 13 2:12 pm

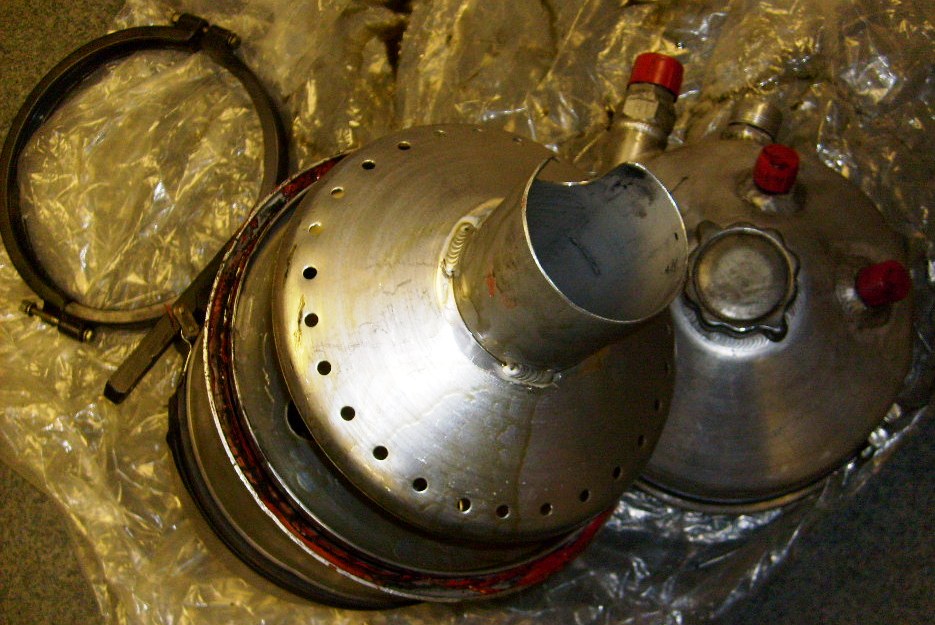

Started assembling dry sump parts today ready for conversion of existing motor with some parts that I`ve been collecting.

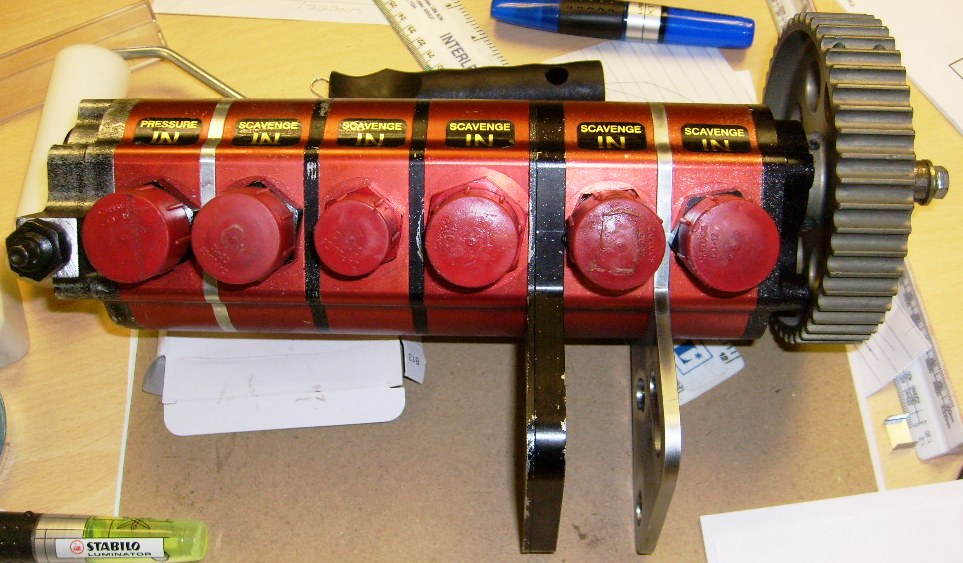

Barnes 6 stage pump ( used )
Moroso pump drive pulleys ( new )
Dry sump ( new )
Oil tank ( used )
Crank scraper ( new )
Vented header ( used )

I will then modify the block as follows :

Remove internal pump
Tap and plug oilway from pump to filter inlet
Remove and shorten oil pump drive shaft to just clear standard bushing

Guy · Post by **Guy** » Wed Jan 02, 13 2:24 pm

Looks nice kit Jon

Just out of interest with that six stage pump where are you scavanging from is it 3x sump , lifter valley and each head??

Jon Connolly · Post by **Jon Connolly** » Wed Jan 02, 13 2:43 pm

Guy wrote:Looks nice kit Jon Just out of interest with that six stage pump where are you scavanging from is it 3x sump , lifter valley and each head??

Thanks Guy .. Happy New Year

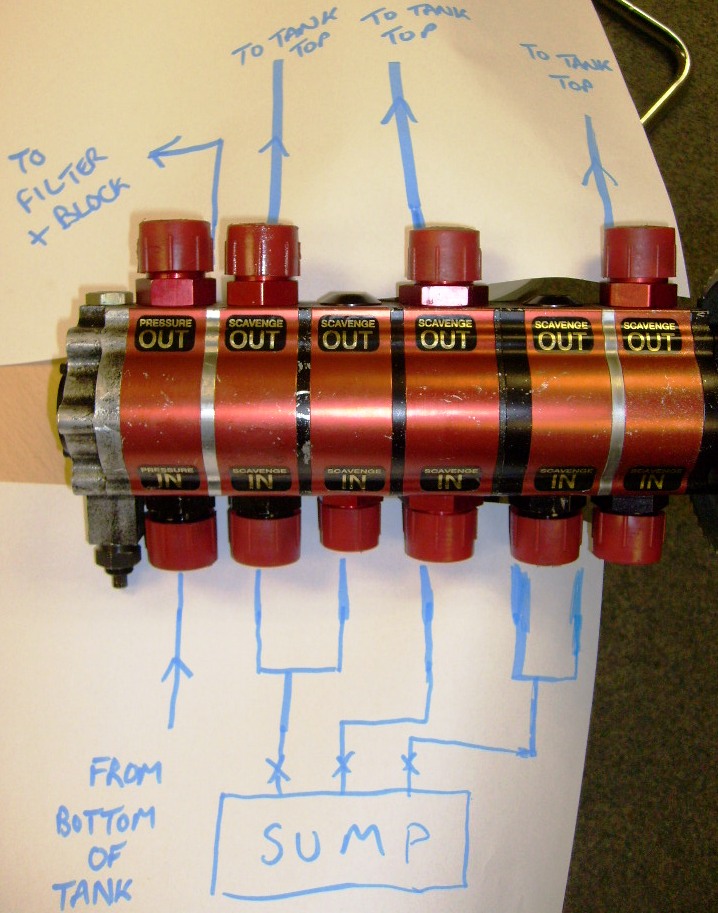

No ... I`m using all 5 suction ports off the 3 pick ups from the sump, each sump pick up goes through a strainer to protect pump .. Hopefully you can see the drawing ? .. 2 delivery ports blocked off.

The oil pressure is then set up with the adjuster on the far left of the combo.

Guy · Post by **Guy** » Wed Jan 02, 13 3:01 pm

Stupid me I forgot about the pressure side five suck and one blow equals six

Just trying to get my head round this

Do the 2nd and 4th stages have a bleed off into the 1st and 5th or do they just dead head (which I would have thought would not be good for the pump or the oil)

Jon Connolly · Post by **Jon Connolly** » Wed Jan 02, 13 3:19 pm

Chamber 1 is closed off to the others

Chamber 2 / 3 / 4 / 5 / 6 are all open to each other on the suction side and open to each other on the discharge side

By doing it this way I am trying to keep a mist of oil over all the vanes but keep the pressure up on the discharge side between pump and tank

Guy · Post by **Guy** » Wed Jan 02, 13 3:23 pm

I was counting from the other end

Chamber 2 / 3 / 4 / 5 / 6 are all open to each other on the suction side and open to each other on the discharge side

By doing it this way I am trying to keep a mist of oil over all the vanes but keep the pressure up on the discharge side between pump and tank

Makes total sence now thanks Jon
