Pete.S wrote:what power you aiming for? weight at a guess is 2400 ish???
Yep 2400 lb ish ... won`t know til it`s finished.
Motor is a smallblock so would be great if it made 500 HP ..
9.844 @ 134.04 ... Smallblock Valiant + NOS
10.169 @ 130.17 ... Smallblock Dodge Ram pick up truck - motor only.
http://www.youtube.com/watch?v=RvwC1fd0 ... 8Z96U8t0LQ
10.169 @ 130.17 ... Smallblock Dodge Ram pick up truck - motor only.
http://www.youtube.com/watch?v=RvwC1fd0 ... 8Z96U8t0LQ
- pete walton
- Posts: 1387
- Joined: Mon Jan 16, 12 4:18 pm
- Jon Connolly
- Posts: 3116
- Joined: Fri Jan 26, 07 8:53 pm
- Location: Asleep on the tarmac ... I`m tired and emotional
Yep not looking forward to the hose costs ... nearly all - 16 and -12
9.844 @ 134.04 ... Smallblock Valiant + NOS
10.169 @ 130.17 ... Smallblock Dodge Ram pick up truck - motor only.
http://www.youtube.com/watch?v=RvwC1fd0 ... 8Z96U8t0LQ
10.169 @ 130.17 ... Smallblock Dodge Ram pick up truck - motor only.
http://www.youtube.com/watch?v=RvwC1fd0 ... 8Z96U8t0LQ
- pete walton
- Posts: 1387
- Joined: Mon Jan 16, 12 4:18 pm
- Jon Connolly
- Posts: 3116
- Joined: Fri Jan 26, 07 8:53 pm
- Location: Asleep on the tarmac ... I`m tired and emotional
Have been waiting on some engine parts so in the meantime I started building my fuel chiller using standard components from DEI and modifying them to how I want them.

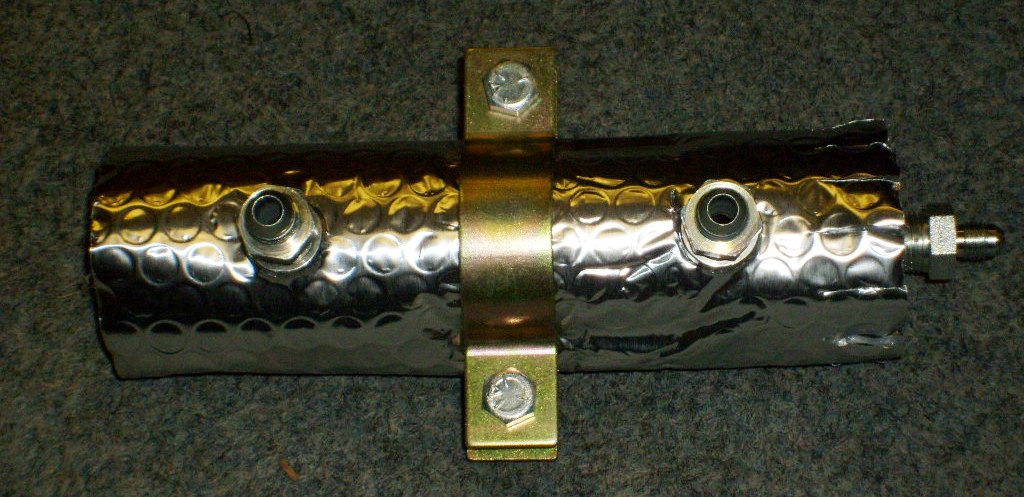

Pictured is the 2nd stage of fuel cooling.
Fuel will be precooled before entering this " tube in tube " heat exchanger and there will also be 2 stages of air cooling before air enters the carb.
All waste co2 will be vented at rear of car away from any potential air intakes.
Pictured is the 2nd stage of fuel cooling.
Fuel will be precooled before entering this " tube in tube " heat exchanger and there will also be 2 stages of air cooling before air enters the carb.
All waste co2 will be vented at rear of car away from any potential air intakes.
- Attachments
-
- S6304406.JPG (164.87 KiB) Viewed 1920 times
9.844 @ 134.04 ... Smallblock Valiant + NOS
10.169 @ 130.17 ... Smallblock Dodge Ram pick up truck - motor only.
http://www.youtube.com/watch?v=RvwC1fd0 ... 8Z96U8t0LQ
10.169 @ 130.17 ... Smallblock Dodge Ram pick up truck - motor only.
http://www.youtube.com/watch?v=RvwC1fd0 ... 8Z96U8t0LQ
Jon Connolly wrote:Pete.S wrote:what power you aiming for? weight at a guess is 2400 ish???
Yep 2400 lb ish ... won`t know til it`s finished.
Motor is a smallblock so would be great if it made 500 HP ..
Yeah and the rest Jon
9.50's on mtr here we come then ...a bit of spray and 8's, smallblocks love it
Les
- Jon Connolly
- Posts: 3116
- Joined: Fri Jan 26, 07 8:53 pm
- Location: Asleep on the tarmac ... I`m tired and emotional

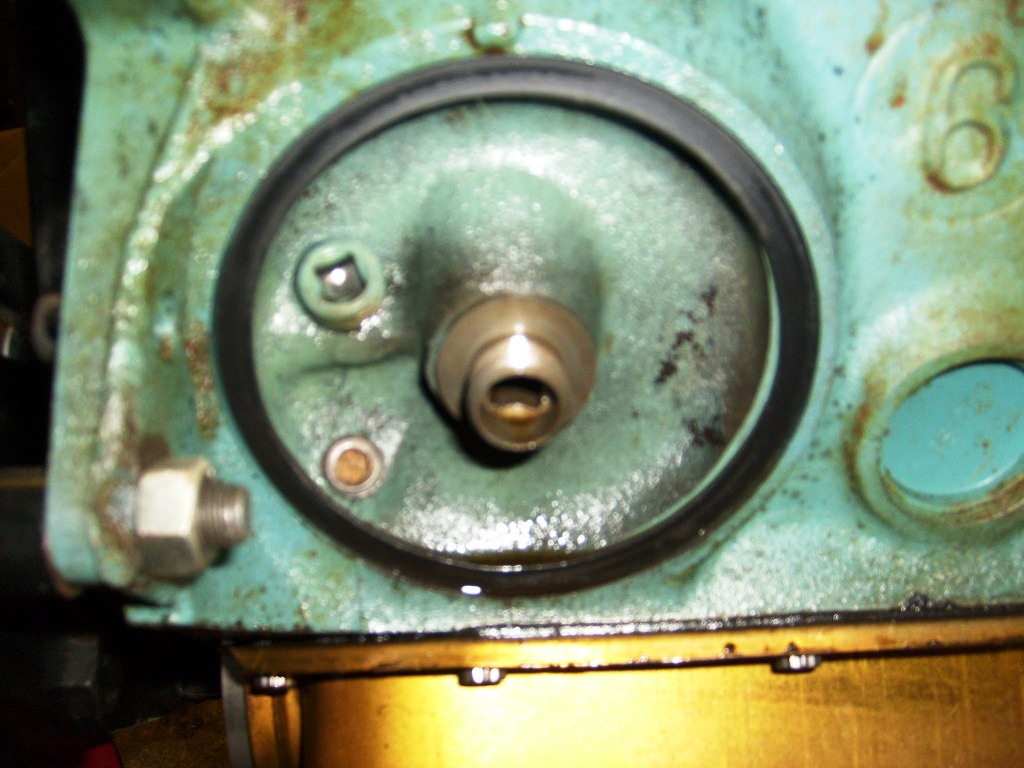

Engine block oilway blocked off.
Next is to make a phospher bronze bush for bottom of oil pump drive shaft.

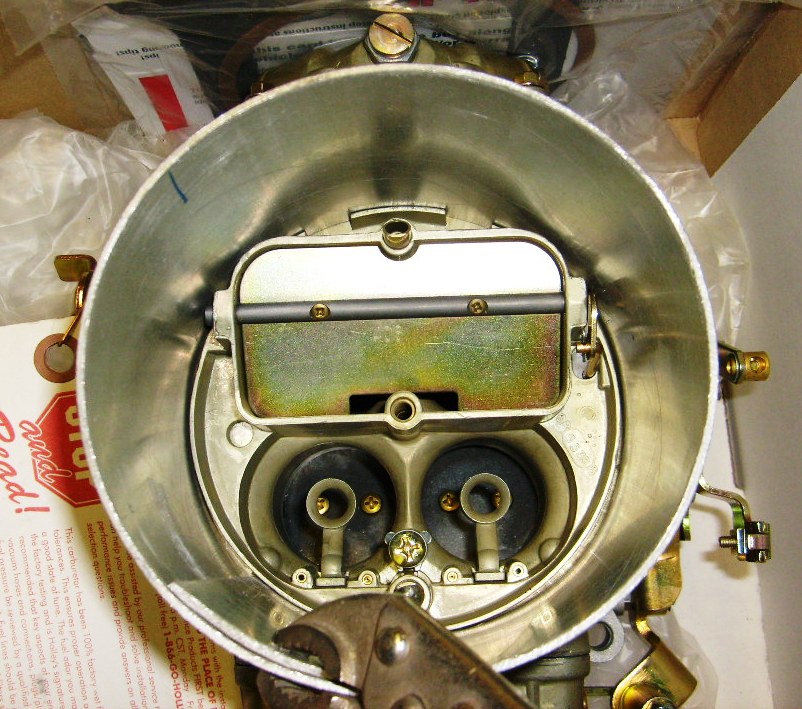

Other pic is my refrigerated intake under construction : This will sit between air filter and carb. All fuel entering carb will also be refrigerated. There is no mechanical drive loss or electrical loss.
Next is to make a phospher bronze bush for bottom of oil pump drive shaft.
Other pic is my refrigerated intake under construction : This will sit between air filter and carb. All fuel entering carb will also be refrigerated. There is no mechanical drive loss or electrical loss.
- Attachments
-
- S6304452.JPG (194.92 KiB) Viewed 1816 times
-
- S6304444.JPG (204.19 KiB) Viewed 1816 times
9.844 @ 134.04 ... Smallblock Valiant + NOS
10.169 @ 130.17 ... Smallblock Dodge Ram pick up truck - motor only.
http://www.youtube.com/watch?v=RvwC1fd0 ... 8Z96U8t0LQ
10.169 @ 130.17 ... Smallblock Dodge Ram pick up truck - motor only.
http://www.youtube.com/watch?v=RvwC1fd0 ... 8Z96U8t0LQ
- Jon Connolly
- Posts: 3116
- Joined: Fri Jan 26, 07 8:53 pm
- Location: Asleep on the tarmac ... I`m tired and emotional

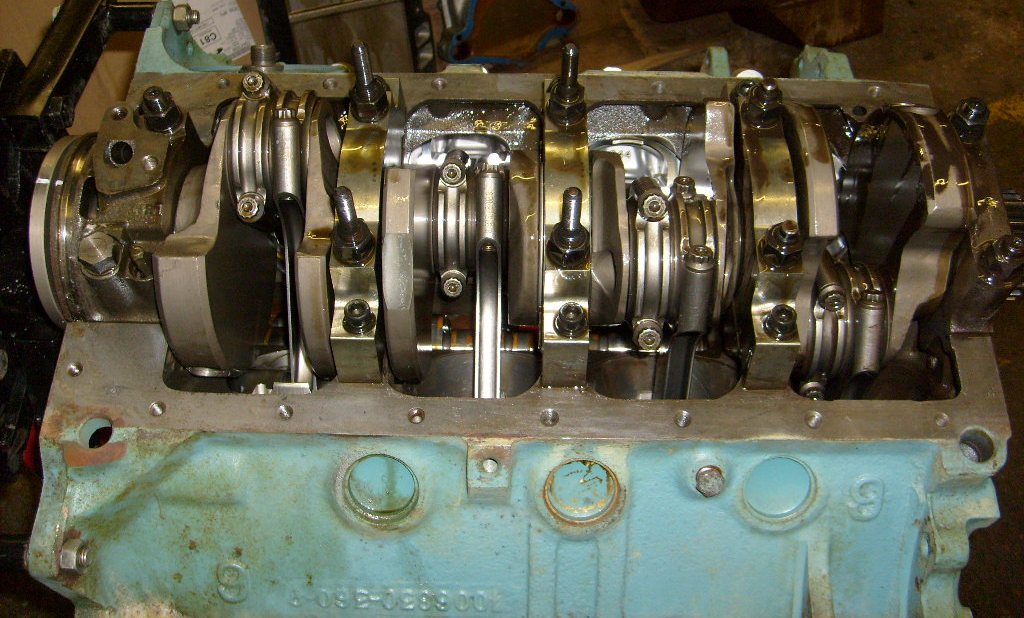

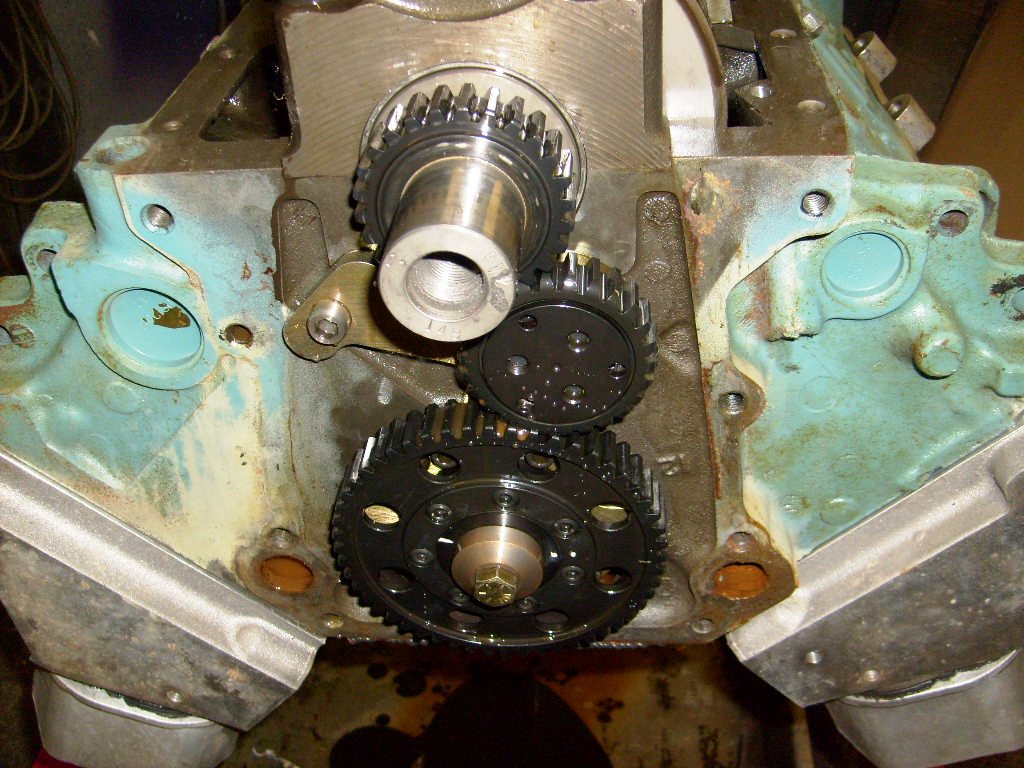

Intake and pan stripped ready to mod oilways
Centre caps will need to be cut to clear new pan
Degrease, prime and paint block
Clean rotating assembly of old oil
Clearance and fit crank scraper
Modify stock oil pump drive shaft
Centre caps will need to be cut to clear new pan
Degrease, prime and paint block
Clean rotating assembly of old oil
Clearance and fit crank scraper
Modify stock oil pump drive shaft
- Attachments
-
- S6304460.JPG (215.78 KiB) Viewed 1717 times
-
- S6304458.JPG (185.87 KiB) Viewed 1717 times
