Jason's Polara
Moderator: Moderators
Re: Jason's Polara
Looks great Blue.
When are you starting the Auto Electrics side of the business then....
When are you starting the Auto Electrics side of the business then....
Dave Tildesley.....MMA-081
72 Dodge Dart
73 Plymouth Duster - SOLD
I wanna go so FAST i think i'm going to DIE!..........Then i'll shift into second!
"My Car is a work in progress, Probably never gonna get finished, never gonna have the money to Bananarama!!"
72 Dodge Dart
73 Plymouth Duster - SOLD
I wanna go so FAST i think i'm going to DIE!..........Then i'll shift into second!
"My Car is a work in progress, Probably never gonna get finished, never gonna have the money to Bananarama!!"
Re: Jason's Polara
I’m no electrician Dave, I can do it but I really have to take my time with it.
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
Re: Jason's Polara
That's looking really good Blue - superb job.
Which Denso is it that you've used? - there seem to be multiple options available!
Which Denso is it that you've used? - there seem to be multiple options available!
Re: Jason's Polara
It's the smallest 45 amp Denso Dougie, it's plenty enough unless there are a load of power hungry add on's.
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
Re: Jason's Polara
looking good
some great improvements and upgrades going on there
some great improvements and upgrades going on there
Si
1970 Charger 500
383 | 4bbl | 727 column | PAS | PAB | buckets/buddy - check out my photos HERE
If you don't want another same old brand-new car ... you could be DODGE MATERIAL
1970 Dodge Charger Registry - https://www.1970chargerregistry.com/
1970 Charger 500
383 | 4bbl | 727 column | PAS | PAB | buckets/buddy - check out my photos HERE
If you don't want another same old brand-new car ... you could be DODGE MATERIAL
1970 Dodge Charger Registry - https://www.1970chargerregistry.com/
Re: Jason's Polara

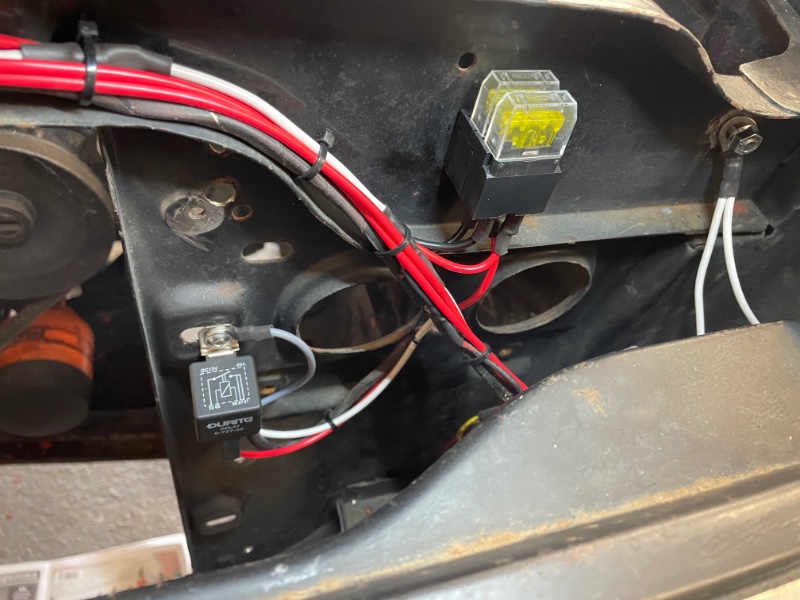

Halogen headlamps replace the stock gloworms armpits with relays and heavier wiring for maximum brightness.
- Attachments
-
- 48611D05-DC03-4A76-A140-2410F83FE352.jpeg (156.49 KiB) Viewed 3998 times
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
- Stu
- Posts: 6927
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Jason's Polara
Looking tidy there! Just received my box of bits from VWP to do the same job. Will be using that pic as reference, for sure.
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
Re: Jason's Polara

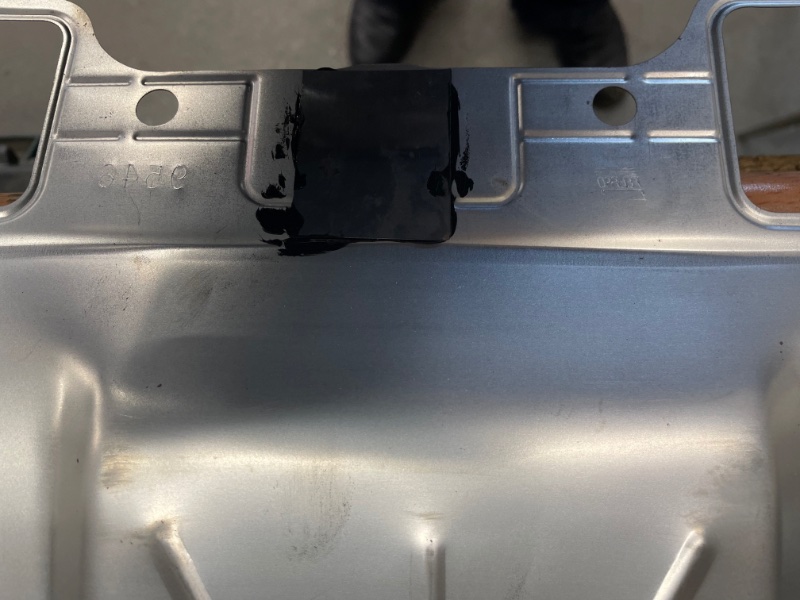

Here’s an old racers trick for ya. A couple of pieces of shim steel can be used to block the heat crossover in the heads to keep hot exhaust gases out of the intake manifold. It might be handy at minus 20 but other than that it just creates a hotter intake charge which reduces power and aids fuel percolation on hot days. A permanent solution was to melt down an old piston and pour the molten ally into the head to totally block the crossover, modern aftermarket heads don’t have the crossover in the first place.
- Attachments
-
- 3EE05BD9-2576-441B-BA4C-041A0D381E13.jpeg (128.25 KiB) Viewed 3955 times
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
- Stu
- Posts: 6927
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Jason's Polara
That’s an interesting one, Blue.
Is that paint, or have you Tiger Sealed that on there?
Is that paint, or have you Tiger Sealed that on there?
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
Re: Jason's Polara
Just silicone to hold it in place.
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
Re: Jason's Polara

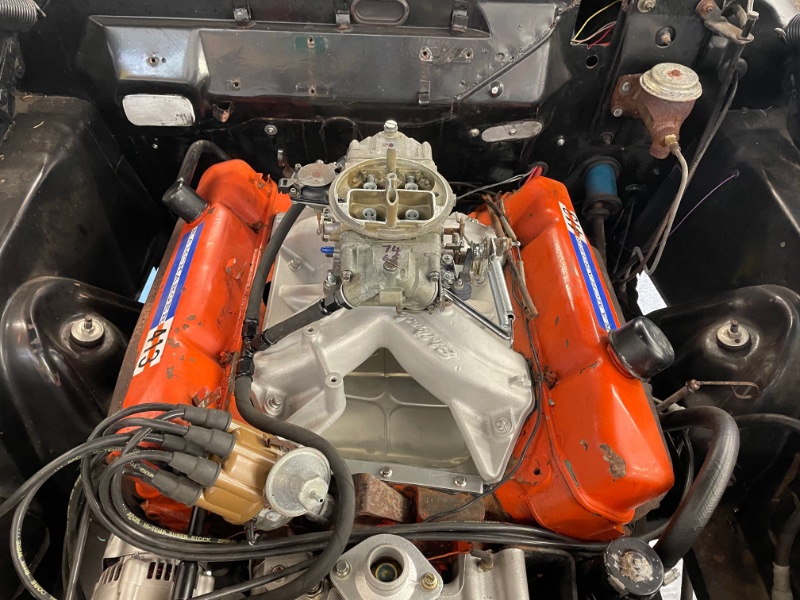

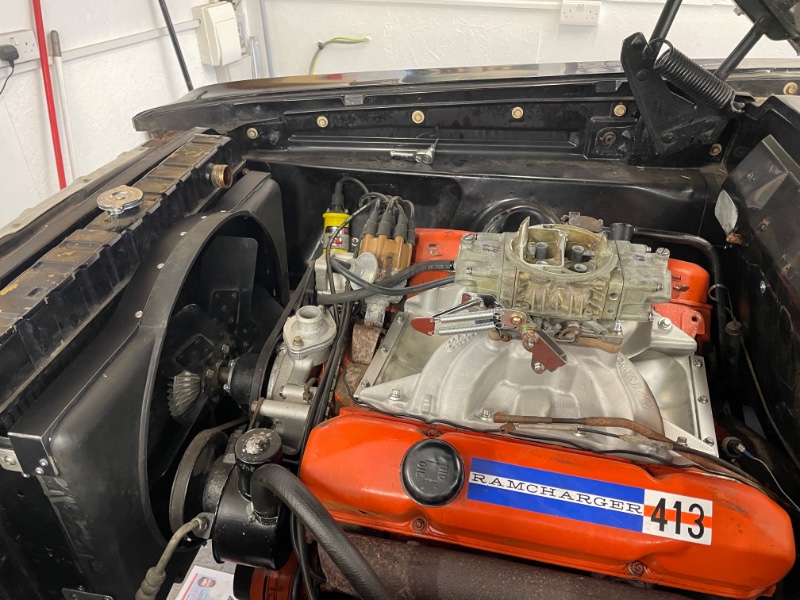

Edelbrock Torker intake and rebuilt 750 vac secondary installed with a 4 hole phenolic spacer. New -6 fuel lines and double return springs fitted, throttle cable and kick down rod will require modification for the higher intake, that’s a job for another day. Cooling system recieves a Clutch fan, new 16psi rad cap and 180 degree high flow stat along with the modified shroud.
- Attachments
-
- 11D49935-85CF-4B9D-8084-913859B782CC.jpeg (214.41 KiB) Viewed 3879 times
-
- 50D230C5-3E7A-4259-BAA5-042E0E405573.jpeg (208.16 KiB) Viewed 3879 times
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
Re: Jason's Polara

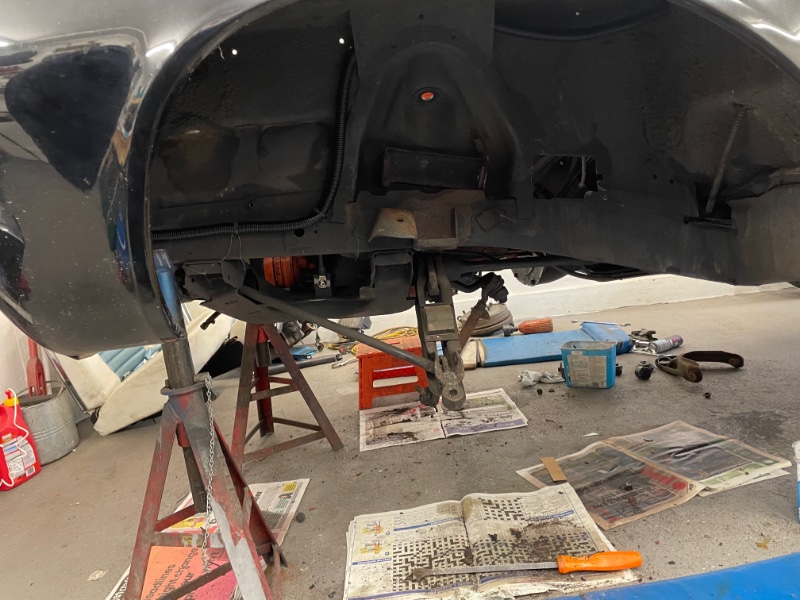

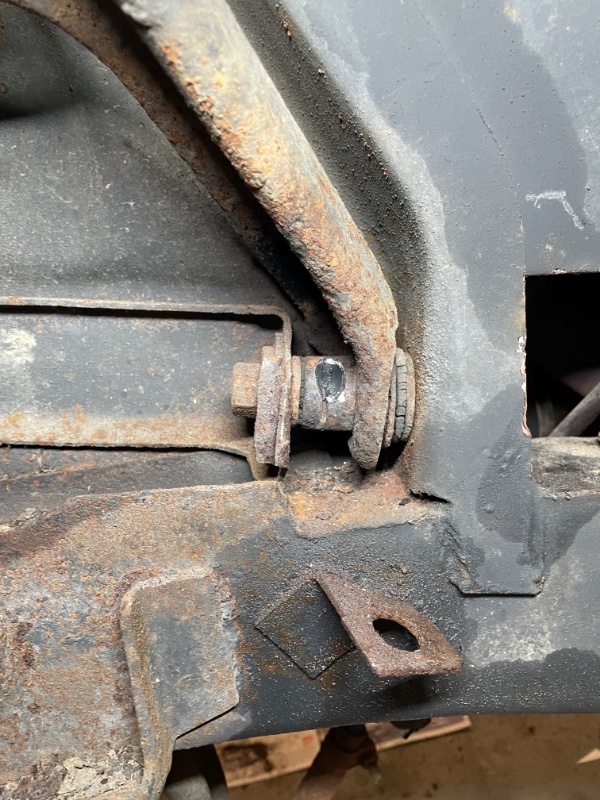

Ah the joy of the seized A arm cam bolt! Luckily the other 3 came out. A die grinder was the only tool I had that would fit in the space so I spent half an hour wearing it away with that….
- Attachments
-
- 93B0AE8A-44FD-485F-B735-BB5E029AD45F.jpeg (235.33 KiB) Viewed 3840 times
-
- 234318DC-D549-4BFE-A8EC-8513DF43243F.jpeg (182.61 KiB) Viewed 3840 times
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
- Stu
- Posts: 6927
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Jason's Polara
Ah, I’m still scarred from the memory of trying to do that in a confined space with a recip-saw!
Not a fun job, bet you’re glad that’s over.
Not a fun job, bet you’re glad that’s over.
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
Re: Jason's Polara
Yea it’s a deeply unpleasant job but for a 60 rear old car most things have unbolted fine so far.
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
