Re: Fifty shades of Jade
“Having just had a near catastrophic accident i thought the best thing to do was a 176mph run”
Classic Will really. Doesn’t even shock me now.
Classic Will really. Doesn’t even shock me now.
"Cum homine de cane debeo congredi." Woof.
Current Charger status - "Working !"
Current Charger status - "Working !"
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
Re: Fifty shades of Jade
Sorry for the late updates, lads.
In short, we struggled.
We built up a new engine and headed back to the track.

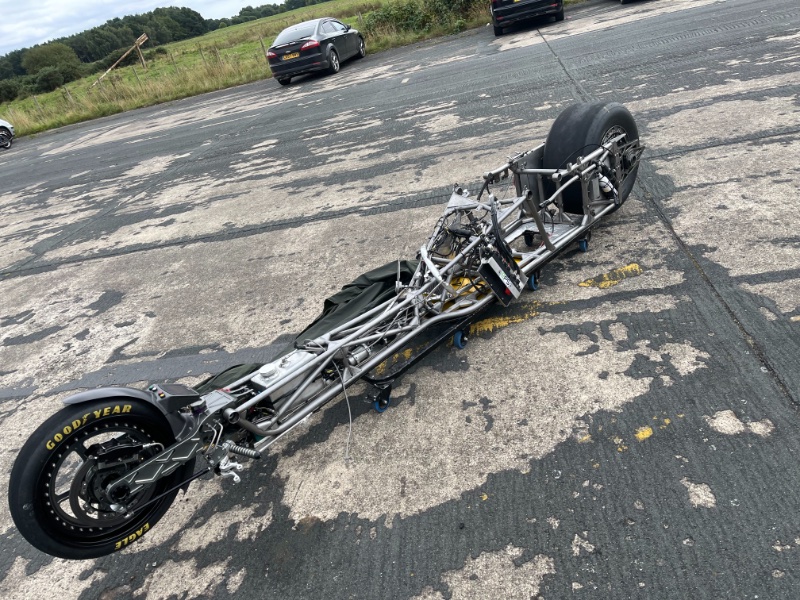

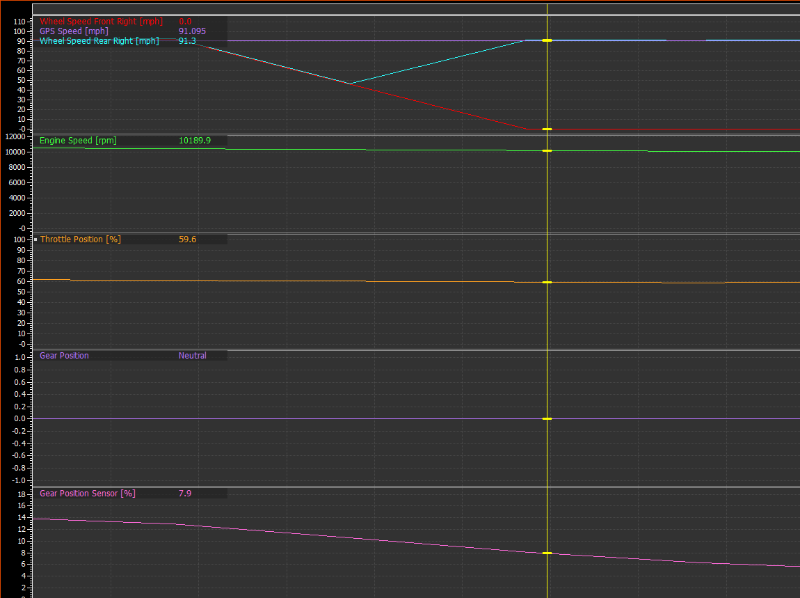

Sadly we did it again due to shift issues. We grenaded another engine at 92mph
This locked the rear wheel again and caused me to panic and grab the front brake.
Sadly in the panic, I grabbed the front brake so hard I locked that also
To be honest I only noticed when I couldn't see thought the smoke coming off the front tyre, lol
The bike skidded to a stop remained straight and felt ok
On a positive, the bike was stable and handled really well even with both the wheels locked
Ahhhhh yes I kept the throttle pinned
In short, we struggled.
We built up a new engine and headed back to the track.
Sadly we did it again due to shift issues. We grenaded another engine at 92mph
This locked the rear wheel again and caused me to panic and grab the front brake.
Sadly in the panic, I grabbed the front brake so hard I locked that also
To be honest I only noticed when I couldn't see thought the smoke coming off the front tyre, lol
The bike skidded to a stop remained straight and felt ok
On a positive, the bike was stable and handled really well even with both the wheels locked
Ahhhhh yes I kept the throttle pinned
- Attachments
-
- Capture.PNG (77.16 KiB) Viewed 3250 times
The closer you are to death the more alive you are
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
Re: Fifty shades of Jade

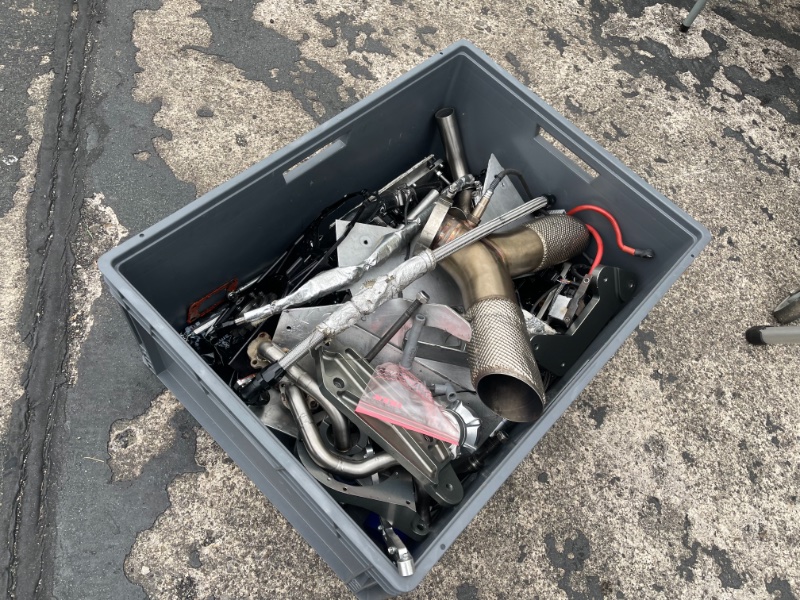

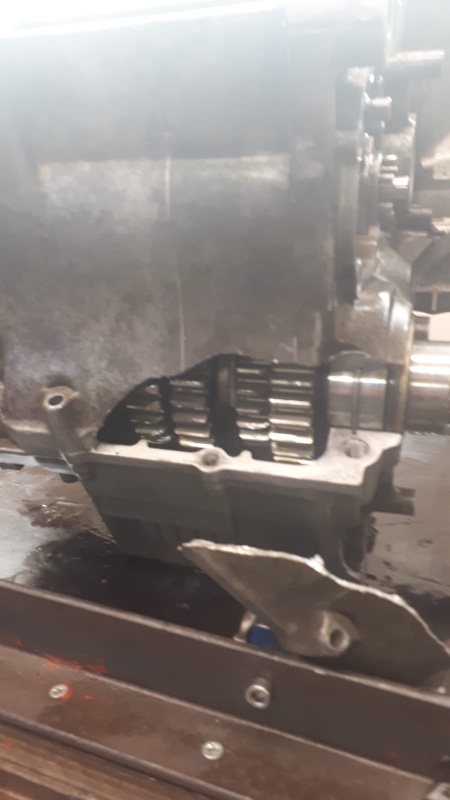

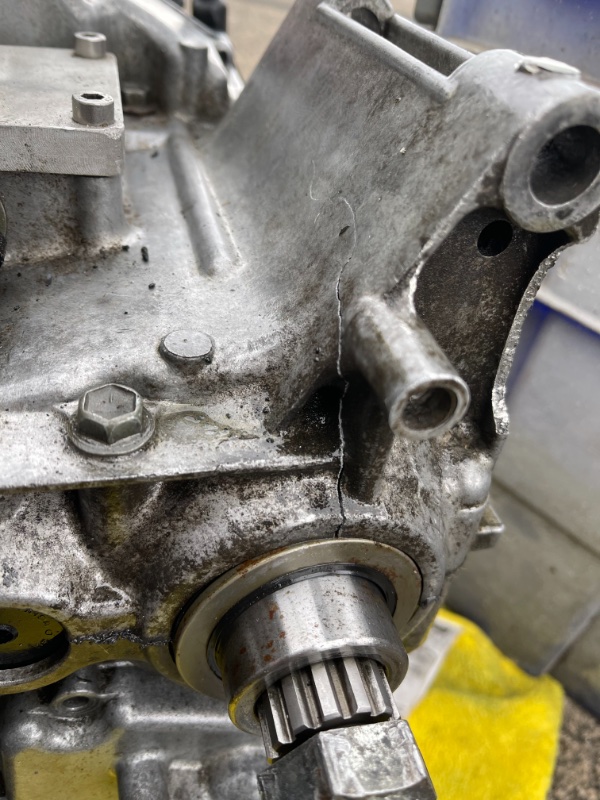

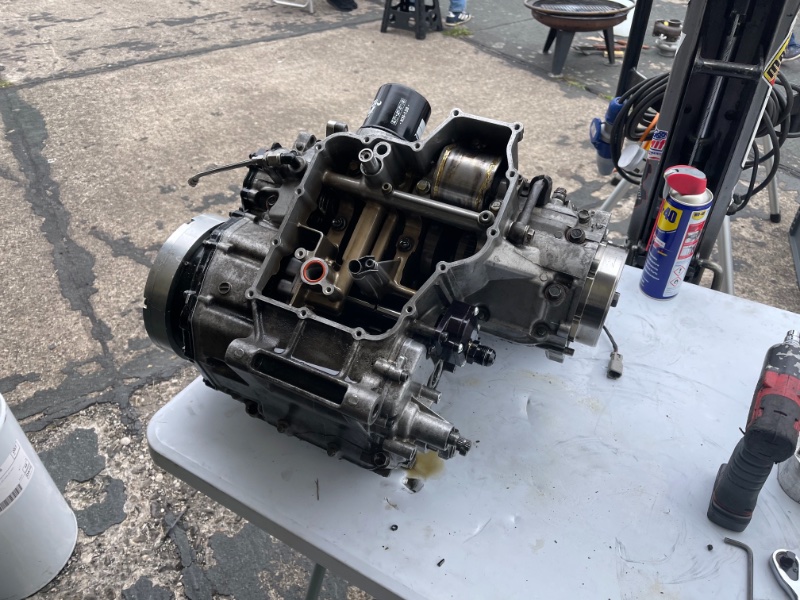

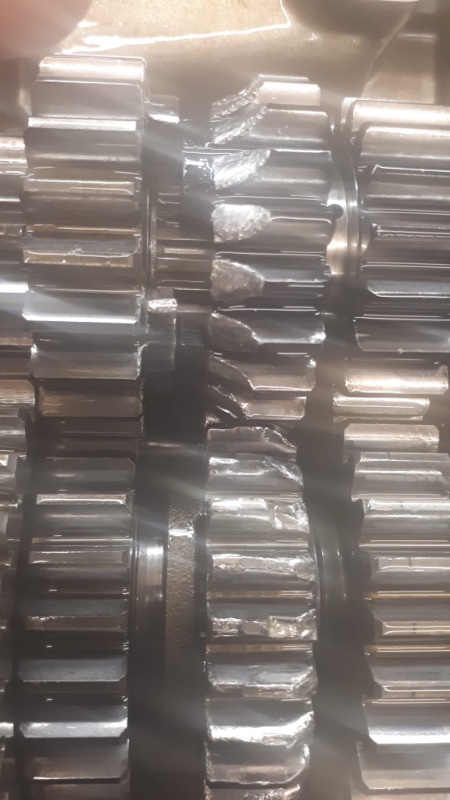

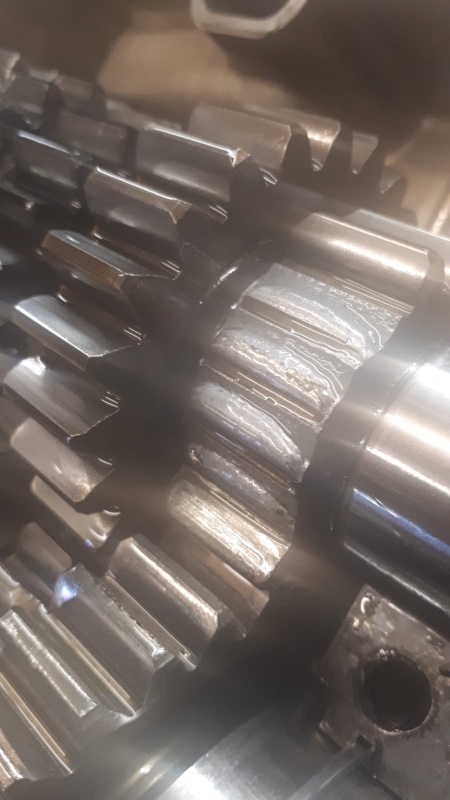

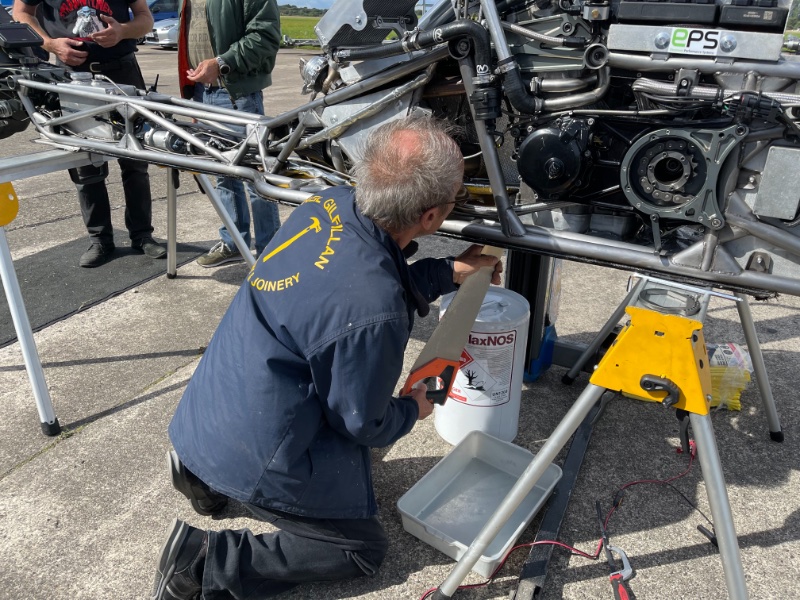

The Blown Gearbox put metal in the oil took out most of the engine and a brand new turbo with it
- Attachments
-
- 3ACD37F9-E5D1-4735-A809-80707A275B2C.jpeg (262.18 KiB) Viewed 3246 times
-
- FC2D5A30-8371-4AFC-9ACC-89EC5D544527.jpeg (217.53 KiB) Viewed 3246 times
-
- A48E94C4-A5C4-4398-A921-CAF4562F41D2.jpeg (291.68 KiB) Viewed 3246 times
-
- C93FF30F-8BCE-445E-AD7E-9CE17E60FE2F.jpeg (199.8 KiB) Viewed 3246 times
-
- F6094654-535D-4347-9A0C-6EE923A0ABE4.jpeg (294.33 KiB) Viewed 3246 times
-
- 69A9BE04-8F0D-4C18-8AC6-5B7180BFD7DD.jpeg (69.81 KiB) Viewed 3246 times
-
- 24089AB7-8DFA-4502-B013-658A1E27580A.jpeg (101.57 KiB) Viewed 3246 times
-
- C1D8CB94-25BC-4370-83BC-C571DFFB9F65.jpeg (89.23 KiB) Viewed 3246 times
-
- BA6C700D-406F-4300-B8BC-3AC1735855A9.jpeg (69.81 KiB) Viewed 3246 times
-
- B5769F92-52A4-4D74-BA68-CD807F621C3B.jpeg (198.92 KiB) Viewed 3246 times
The closer you are to death the more alive you are
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
Re: Fifty shades of Jade
So we got back on the horse.
We build another engine

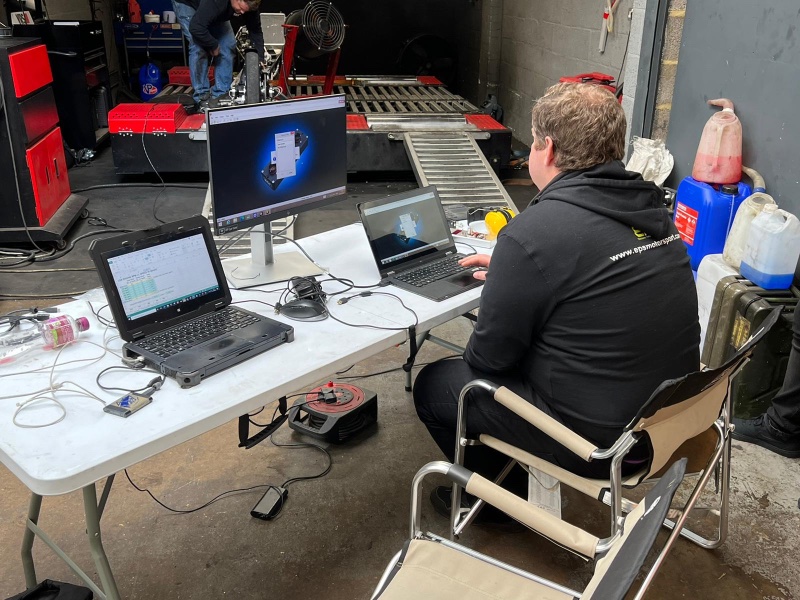

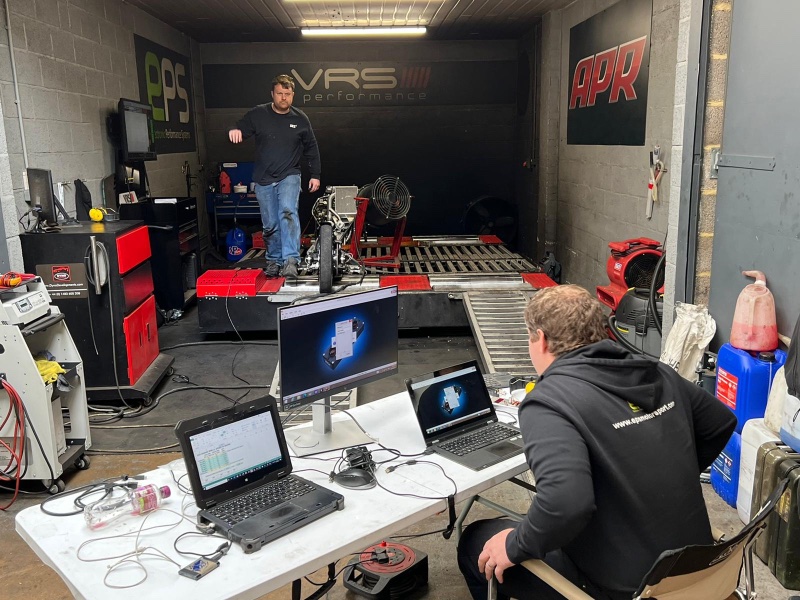

I decided that maybe it would be best to test the gear system on a dyno before going back to the track and conducting another stunt show

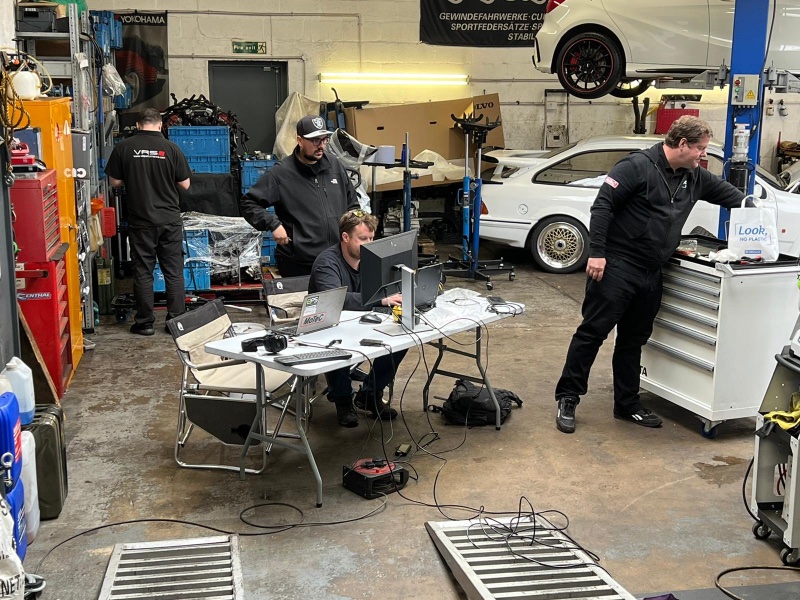

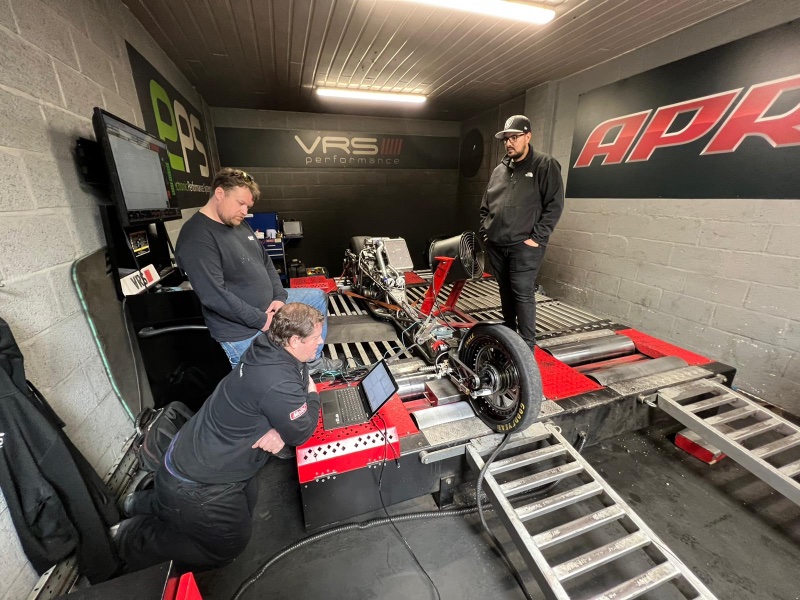

So off we went and got the bike on a dyno for shift testing.
- Attachments
-
- A8C8FA60-D058-47DA-8547-E45D7D0ECA5E.jpeg (250.93 KiB) Viewed 3239 times
-
- C248B726-DE55-4252-8026-16949C8E2F99.jpeg (207.41 KiB) Viewed 3239 times
-
- 96679331-C17D-4EC7-83E5-CB0366147C56.jpeg (210.62 KiB) Viewed 3239 times
-
- 8D9779F3-E632-4D37-8713-5FC136341024.jpeg (207.61 KiB) Viewed 3239 times
The closer you are to death the more alive you are
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
Re: Fifty shades of Jade
We are now achieving full-throttle upshifts in 34ms
It is unbelievable how fast and violently it changes gear
The closer you are to death the more alive you are
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
Re: Fifty shades of Jade
Dyno was good and really did have a few eureka moments.
The control system is the latest and uses more advanced shift strategies than conventional systems.

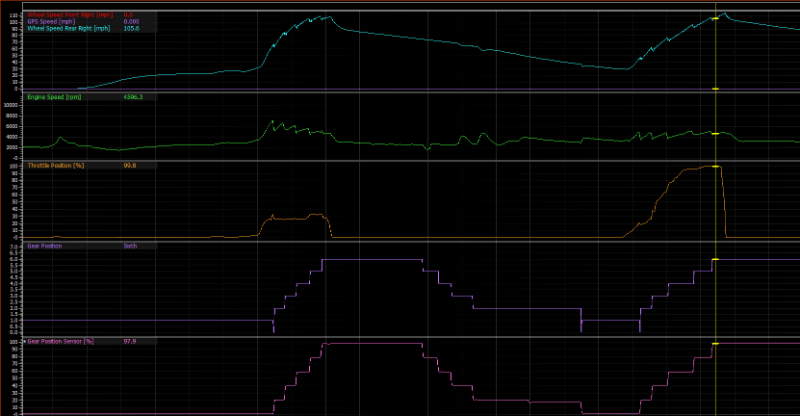

Below shows Gearbox going up and down the box
The control system is the latest and uses more advanced shift strategies than conventional systems.
Below shows Gearbox going up and down the box
- Attachments
-
- gear up.PNG (77.87 KiB) Viewed 3236 times
The closer you are to death the more alive you are
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
Re: Fifty shades of Jade
So we headed back the track

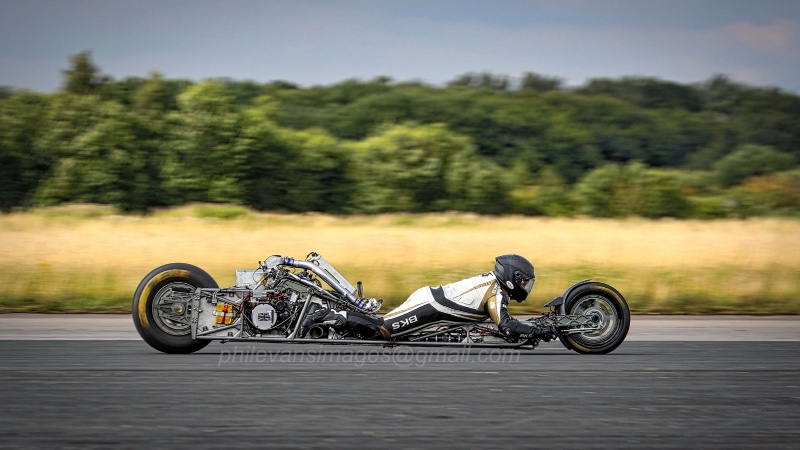

First run out the bike seemed ok steady away and a gentle 140mph
First run out the bike seemed ok steady away and a gentle 140mph
- Attachments
-
- 8E84A689-033A-41E6-B295-0789E78098AD.jpeg (110.34 KiB) Viewed 3226 times
-
- 00DDAC15-8347-4DF0-85A9-45FB9731C982.jpeg (106.69 KiB) Viewed 3226 times
The closer you are to death the more alive you are
- Stu
- Posts: 6936
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Fifty shades of Jade
Will, it always amazes me you can walk, given your balls are clearly the size of watermelons.
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
Re: Fifty shades of Jade
Everything seemed ok sort of
We see that we are loading the gearbox up under the high loads, our gearbox position sensor is moving. (Pre load of gearbox)
So we had to do a run log it fold that back into our configuration.
Sadly most F1 teams have hundreds of engineers doing this, so it's slow, and mistakes happen.

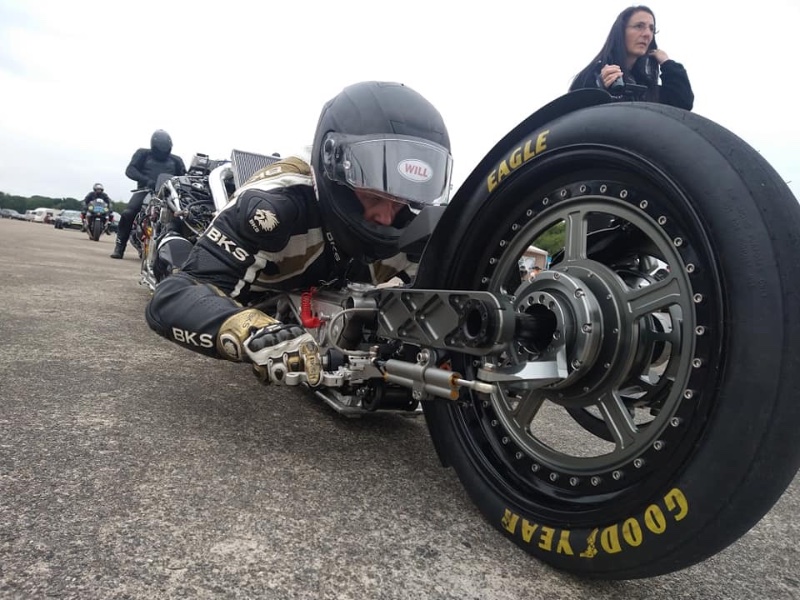

The excellent picture below is from 10 of the best, with hundreds of people screaming at me as I stage on the line.
I'm just thinking I shouldn't have had that Cheese burger form the greasy van)
We see that we are loading the gearbox up under the high loads, our gearbox position sensor is moving. (Pre load of gearbox)
So we had to do a run log it fold that back into our configuration.
Sadly most F1 teams have hundreds of engineers doing this, so it's slow, and mistakes happen.
The excellent picture below is from 10 of the best, with hundreds of people screaming at me as I stage on the line.
I'm just thinking I shouldn't have had that Cheese burger form the greasy van)
- Attachments
-
- 0A8A1677-3C3E-4416-A287-9C3892F580A9.jpeg (170.02 KiB) Viewed 3248 times
The closer you are to death the more alive you are
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
Re: Fifty shades of Jade
and well we Bananarama! it again

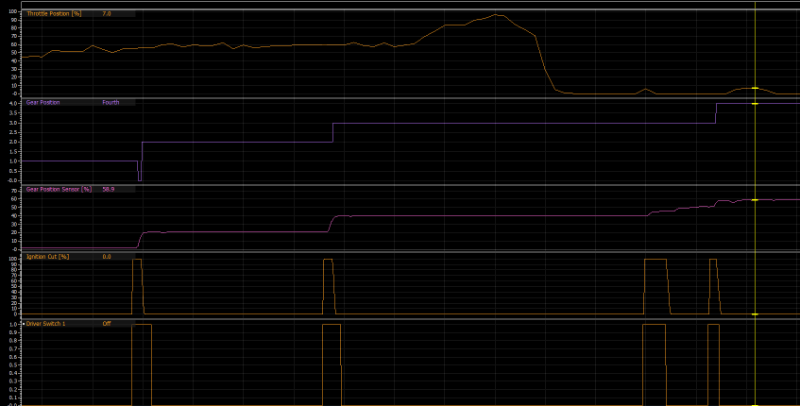

Changing from 3-4 funny noise shut down pulled the clutch in - Logs below
But I learnt what is the issue
Will 0 -- Engine 4 ffs
Changing from 3-4 funny noise shut down pulled the clutch in - Logs below
But I learnt what is the issue
Will 0 -- Engine 4 ffs
- Attachments
-
- 3-4.PNG (54.52 KiB) Viewed 3245 times
The closer you are to death the more alive you are
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
Re: Fifty shades of Jade

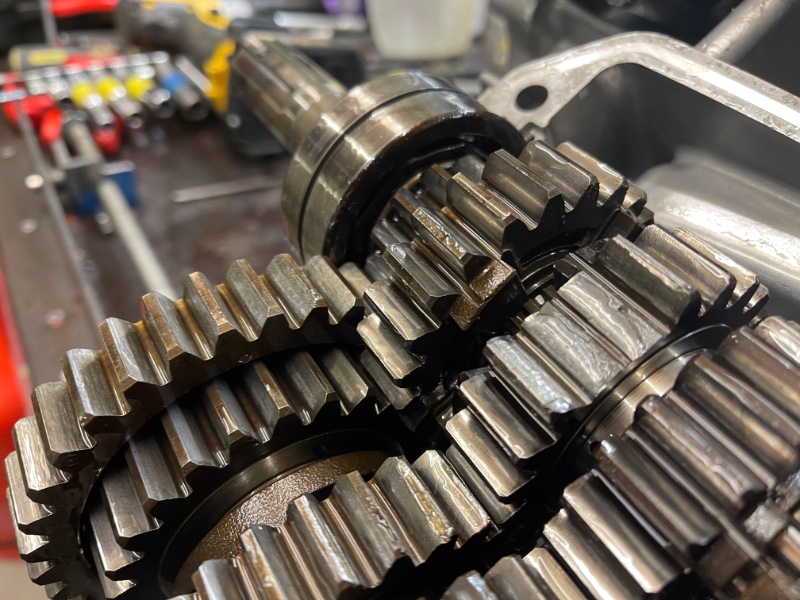

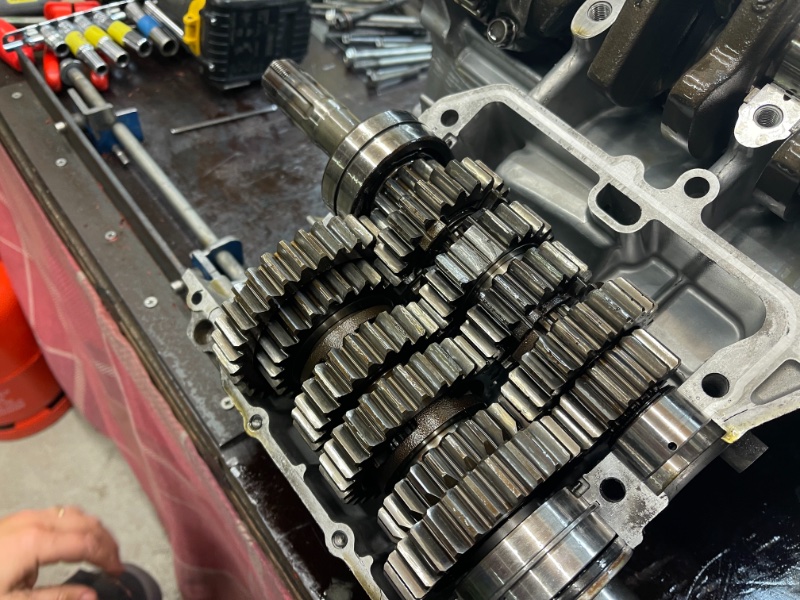

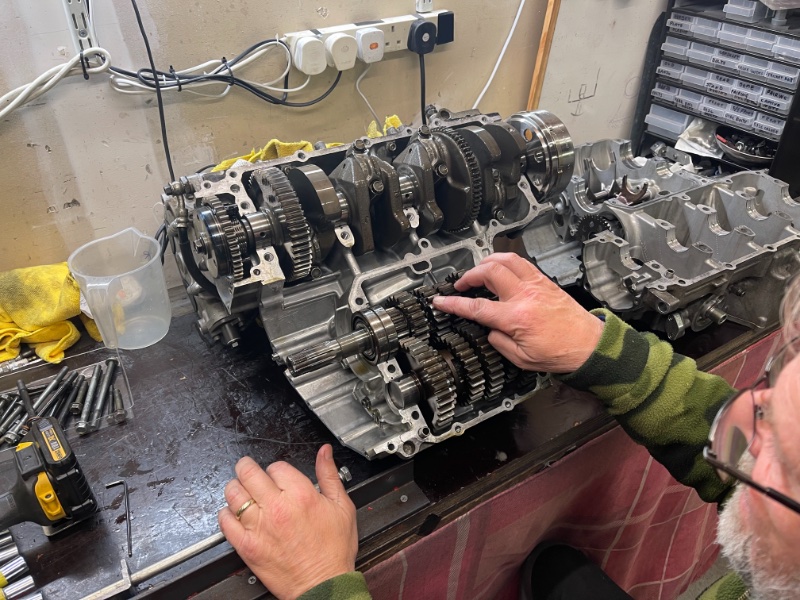

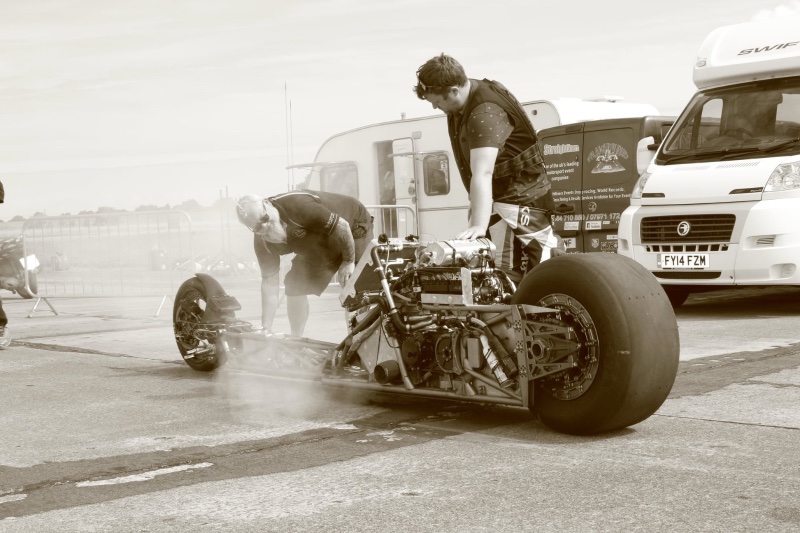

Engine out and rebuild it again

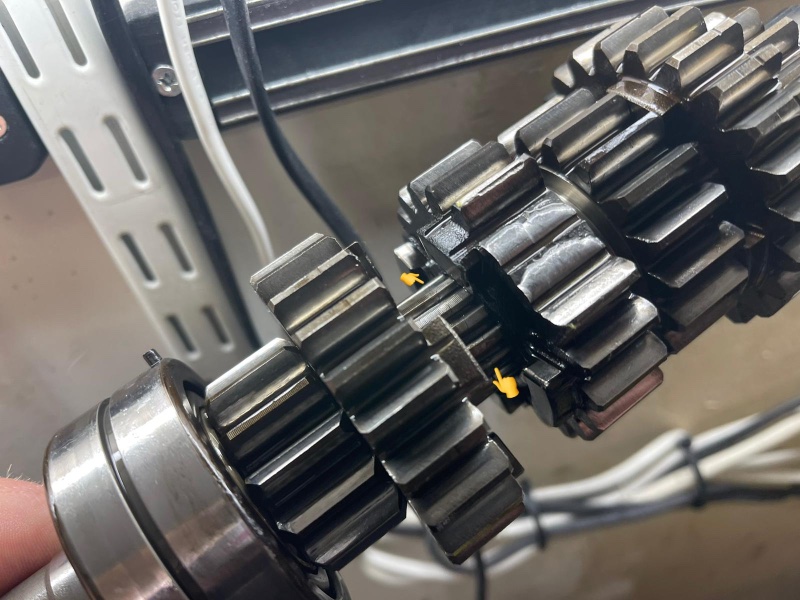

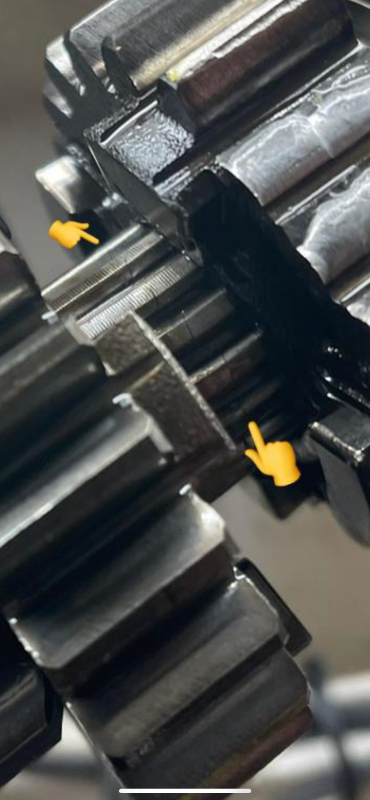

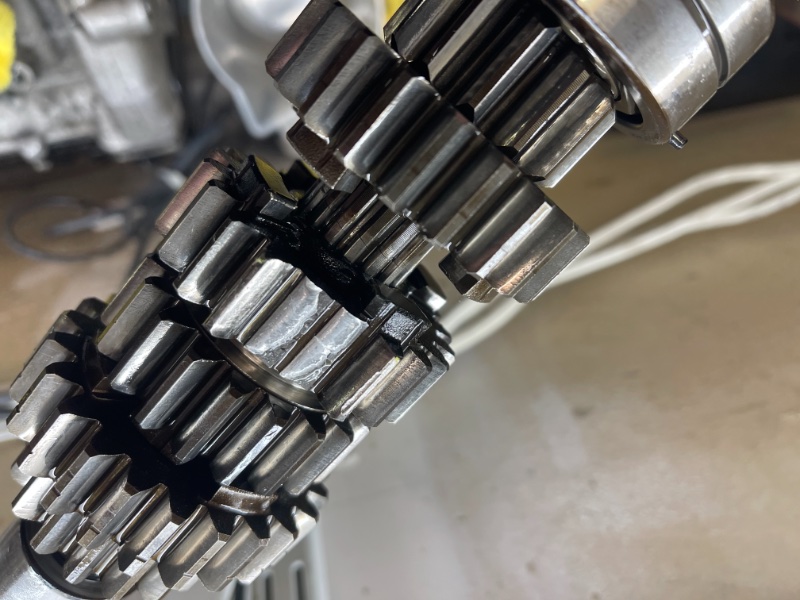

Found new broken bits and managed to do a input shaft this time joy
Found new broken bits and managed to do a input shaft this time joy
- Attachments
-
- 1D77233A-D8EA-4E4A-8C0E-E97DEF3D3E17.jpeg (145.16 KiB) Viewed 3244 times
-
- B8250B3E-1097-4EB8-AC34-618D8325D137.jpeg (128.61 KiB) Viewed 3244 times
-
- 1620383A-AC6B-4F4A-9866-7629CB36F188.jpeg (234.23 KiB) Viewed 3243 times
-
- CE9DDC8E-E40D-4188-82B1-2B9032395AD9.jpeg (230.86 KiB) Viewed 3243 times
-
- 2BDBCC32-C693-451C-B72C-15E54FB5F65A.jpeg (201.85 KiB) Viewed 3243 times
-
- CE4AD6F7-9060-4BD3-8A11-63AC449F2C6D.jpeg (161.06 KiB) Viewed 3243 times
-
- C9992485-754E-448F-A59D-3B491555ADF6.jpeg (157.42 KiB) Viewed 3243 times
-
- 9FD18FF6-4625-4273-B651-697F314CAEB5.png (483.27 KiB) Viewed 3243 times
The closer you are to death the more alive you are
Re: Fifty shades of Jade
The "Bleeding Edge" of Technology, ehh??
Pete Wiseman; Cambridge.
Mopar by the grace of God
Mopar by the grace of God
Re: Fifty shades of Jade
Will, these motors are used a lot in 'conventional' drag bikes and I thought they were regarded as pretty bulletproof. Obviously not though (gulp).
Are these problems common, or is there something in your design that puts more stress on them?
Are these problems common, or is there something in your design that puts more stress on them?
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
Re: Fifty shades of Jade
Hundred per cent agree
I picked this engine due to being "bulletproof."
I think there are a few factors that are leading me to have issues.
1. The rear wheel is a huge rotating mass 5x that on any SSB (Super Street bike) I believe the higher gyroscopic forces outweigh the mass increase but, This giant wheel and tyre is very unforgiving on the gearbox when trying to unload and load the gearbox (change gear)
2. We are on a budget and using standard gears to take the relatively low powers we are running. We do have a billet gearbox, but father won’t let me run it till I have proven myself.
3. Mistakes I have made many and in the heat of the moment and most of the time I’m trying to run before I can walk…
4. Shift strategy. Today the SSB rider presses the shift button. A 100ms timer is initiated, which cuts spark, and the gearbox is fired into the next gear. Regardless of what happens 100ms later, the spark it lite and gunshot gear changes are heard. The new very advanced system has a different strategy - monitor gear position cut the fuel and ignition then once the gear is in and fully meshed lite it. resulting in a much faster shift than 100 ms. (ultimately the most rapid possible shift) There are also strategies for what happens if the gearbox doesn't go in and the back out a plan for a failed shift. This all has to be set up for 1-2 / 2-3 / 3-4 etc.; some gears go in faster than others / less torque in higher gears / Unburnt fuel in long manifold pipes causing backfires etc. etc. etc. etc. endless.
Sadly the reality is for the distances I’m running, a 200ms £5 kill box would be fine, but the ÉCU is designed to do it this way, and I’m now fully invested in the bleeding edge
The next plan would be full auto upshifts and launch and traction control.
Every time we grenade something, we find an issue and fix it.
I picked this engine due to being "bulletproof."
I think there are a few factors that are leading me to have issues.
1. The rear wheel is a huge rotating mass 5x that on any SSB (Super Street bike) I believe the higher gyroscopic forces outweigh the mass increase but, This giant wheel and tyre is very unforgiving on the gearbox when trying to unload and load the gearbox (change gear)
2. We are on a budget and using standard gears to take the relatively low powers we are running. We do have a billet gearbox, but father won’t let me run it till I have proven myself.
3. Mistakes I have made many and in the heat of the moment and most of the time I’m trying to run before I can walk…
4. Shift strategy. Today the SSB rider presses the shift button. A 100ms timer is initiated, which cuts spark, and the gearbox is fired into the next gear. Regardless of what happens 100ms later, the spark it lite and gunshot gear changes are heard. The new very advanced system has a different strategy - monitor gear position cut the fuel and ignition then once the gear is in and fully meshed lite it. resulting in a much faster shift than 100 ms. (ultimately the most rapid possible shift) There are also strategies for what happens if the gearbox doesn't go in and the back out a plan for a failed shift. This all has to be set up for 1-2 / 2-3 / 3-4 etc.; some gears go in faster than others / less torque in higher gears / Unburnt fuel in long manifold pipes causing backfires etc. etc. etc. etc. endless.
Sadly the reality is for the distances I’m running, a 200ms £5 kill box would be fine, but the ÉCU is designed to do it this way, and I’m now fully invested in the bleeding edge
The next plan would be full auto upshifts and launch and traction control.
Every time we grenade something, we find an issue and fix it.
The closer you are to death the more alive you are
Re: Fifty shades of Jade
What if you ran the output via an intermediate shaft that separate the Wheel mass directly from the Gearbox sprocket...
