G'day to all
I purchased a few weeks ago by auction a Charger Sportsman which I suspect a lot of you know.
Thought it was about time I introduced myself, my name is Henry, and spent a lot of my life in Australia (mainly WA but also 6 years in Sydney Northern Beaches), now live in Kent.
A Holden man really, but also liked Chargers, saw the Sportsman online a few days before the auction, and thought what the heck you only live once....
Cheers
Henry
I purchased a few weeks ago by auction a Charger Sportsman which I suspect a lot of you know.
Thought it was about time I introduced myself, my name is Henry, and spent a lot of my life in Australia (mainly WA but also 6 years in Sydney Northern Beaches), now live in Kent.
A Holden man really, but also liked Chargers, saw the Sportsman online a few days before the auction, and thought what the heck you only live once....
Cheers
Henry
- Trigger_Andy
- Posts: 7867
- Joined: Sun Apr 18, 04 10:27 pm
- Location: Stavanger, Norway
nice car
welcome welcome...
good, solid, no rust
good a to see another charger owner on board
if you want a spare BW35 and Converter i have one yours for £75, box converter and flex plate
its a low milage sat in a breakers yard for 40 years sized up linakges but good red fluid came on a hemi 6 but i need the converter housing for a transmission conversion that will probably never happen
came off a hemi 6 that had done so few miles it had no ridge or ware in the bores...car off road and scrapped probably due to fracture right through the exhaust manifold. and then numerose epoxy bodges
i'm never gonna use it mines got a 4 speed
i have a few bits n bobs
when were you in syndey?
Dave
welcome welcome...
good, solid, no rust
good a to see another charger owner on board
if you want a spare BW35 and Converter i have one yours for £75, box converter and flex plate
its a low milage sat in a breakers yard for 40 years sized up linakges but good red fluid came on a hemi 6 but i need the converter housing for a transmission conversion that will probably never happen
came off a hemi 6 that had done so few miles it had no ridge or ware in the bores...car off road and scrapped probably due to fracture right through the exhaust manifold. and then numerose epoxy bodges
i'm never gonna use it mines got a 4 speed
i have a few bits n bobs
when were you in syndey?
Dave
The Greater Knapweed near the Mugwort by the Buckthorn tree is dying
Welcome to the club.........
Be great to see some pictures..........
As you can see, lots of help and assistance for the Aussie stuff!
Be great to see some pictures..........
As you can see, lots of help and assistance for the Aussie stuff!
Dave Tildesley.....MMA-081
72 Dodge Dart
73 Plymouth Duster - SOLD
I wanna go so FAST i think i'm going to DIE!..........Then i'll shift into second!
"My Car is a work in progress, Probably never gonna get finished, never gonna have the money to Bananarama!!"
72 Dodge Dart
73 Plymouth Duster - SOLD
I wanna go so FAST i think i'm going to DIE!..........Then i'll shift into second!
"My Car is a work in progress, Probably never gonna get finished, never gonna have the money to Bananarama!!"
- Cannonball
- Posts: 17242
- Joined: Sun Apr 18, 04 11:26 pm
- Location: crewe, cheshire
- Contact:
I am pretty certain that the aussie bw35 is different than the regular ones used in cars in the uk, also they buggered about within the aussie chrysler chargers and pickups n saloons trying different bits in and around the bw 35 so not easy interchange that one,,,,,,Dave999 wrote:nice car
welcome welcome...
good, solid, no rust
good a to see another charger owner on board
if you want a spare BW35 and Converter i have one yours for £75, box converter and flex plate
its a low milage sat in a breakers yard for 40 years sized up linakges but good red fluid came on a hemi 6 but i need the converter housing for a transmission conversion that will probably never happen
came off a hemi 6 that had done so few miles it had no ridge or ware in the bores...car off road and scrapped probably due to fracture right through the exhaust manifold. and then numerose epoxy bodges
i'm never gonna use it mines got a 4 speed
i have a few bits n bobs
when were you in syndey?
Dave
www.dwatts80.fsnet.co.uk
WATTS RACING TRANSMISSIONS, CLOBBER THE COMPETITION ITS CLOBBERIN TIME
OFTEN OUTNUMBERED NEVER OUTGUNNED,
HEY WHATS THE TOP END ON THAT SUPERSPORTS. UNLIMITED,
I HAVE A NVQW
LIFE GOES PRETTY FAST, IF YOU DONT LOOK ROUND A WHILE YOU MAY JUST MISS IT,
THE PASS IS THE JUICE,
LOVED BY FEW,
HATED BY MANY
RESPECTED BY ALL
WATTS RACING TRANSMISSIONS, CLOBBER THE COMPETITION ITS CLOBBERIN TIME
OFTEN OUTNUMBERED NEVER OUTGUNNED,
HEY WHATS THE TOP END ON THAT SUPERSPORTS. UNLIMITED,
I HAVE A NVQW
LIFE GOES PRETTY FAST, IF YOU DONT LOOK ROUND A WHILE YOU MAY JUST MISS IT,
THE PASS IS THE JUICE,
LOVED BY FEW,
HATED BY MANY
RESPECTED BY ALL
- Cannonball
- Posts: 17242
- Joined: Sun Apr 18, 04 11:26 pm
- Location: crewe, cheshire
- Contact:
sorry dave what i meant to say is the chrysler version of the bw35 is different than used on jags/rovers/escorts/triumphs/granadas etc etc and they also fooled around with them in there own vehicles,/Dave999 wrote:exactly
aussie configuration for aussie charger.
but might be saloon.... think all UK chargers were 4 speed or 904 and a 318
we can check filler tube might be wrong side
Dave
www.dwatts80.fsnet.co.uk
WATTS RACING TRANSMISSIONS, CLOBBER THE COMPETITION ITS CLOBBERIN TIME
OFTEN OUTNUMBERED NEVER OUTGUNNED,
HEY WHATS THE TOP END ON THAT SUPERSPORTS. UNLIMITED,
I HAVE A NVQW
LIFE GOES PRETTY FAST, IF YOU DONT LOOK ROUND A WHILE YOU MAY JUST MISS IT,
THE PASS IS THE JUICE,
LOVED BY FEW,
HATED BY MANY
RESPECTED BY ALL
WATTS RACING TRANSMISSIONS, CLOBBER THE COMPETITION ITS CLOBBERIN TIME
OFTEN OUTNUMBERED NEVER OUTGUNNED,
HEY WHATS THE TOP END ON THAT SUPERSPORTS. UNLIMITED,
I HAVE A NVQW
LIFE GOES PRETTY FAST, IF YOU DONT LOOK ROUND A WHILE YOU MAY JUST MISS IT,
THE PASS IS THE JUICE,
LOVED BY FEW,
HATED BY MANY
RESPECTED BY ALL
- aussie pete
- Posts: 371
- Joined: Wed Feb 28, 07 5:58 pm
- Location: Stretton Under Fosse
Thanks for the welcome guys
Dave999, thanks for the heads up that you have a converter, will bare that in mind, need to get the car looked over before I get anything done to it. I was in Sydney late 1999 through 2006.
I do need to get a new pair of rear tyres , currently she has Goodyear Eagle GA – P215 65R14 96H, any suggestions ? - she has Simex SM800 – 215 65R14 94H on the front and they have a fair bit of tread left.

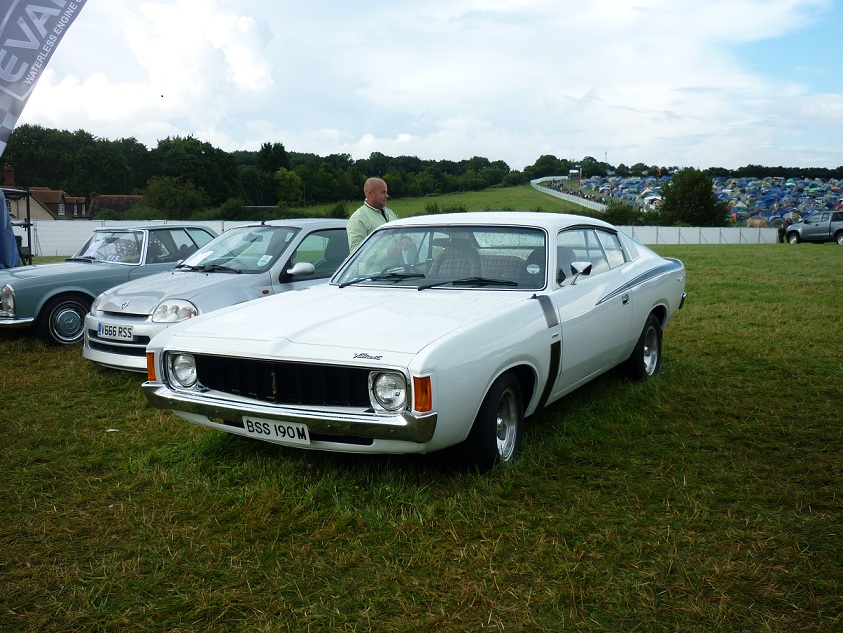

Yes aussie pete that is the car, not taken many photo's of it yet, but here is one...
I also have a Holden HZ Kingswood ute.
Dave999, thanks for the heads up that you have a converter, will bare that in mind, need to get the car looked over before I get anything done to it. I was in Sydney late 1999 through 2006.
I do need to get a new pair of rear tyres , currently she has Goodyear Eagle GA – P215 65R14 96H, any suggestions ? - she has Simex SM800 – 215 65R14 94H on the front and they have a fair bit of tread left.
Yes aussie pete that is the car, not taken many photo's of it yet, but here is one...
I also have a Holden HZ Kingswood ute.
- Attachments
-
- 20150321_143311 - Valiant Charger (1362 x 766).jpg (241.84 KiB) Viewed 1766 times
ahha I was in Sydney 2000 to 2004
Tyres
Hercules 235 70 R14 for the back on mine
and anything up to 225 for the front.
Bored at work so here goes a brain dump so you can get looking for bits you think you might need
yours has the 265 2 barrel engine using a carter BBD (Ball and Ball Dual 2 barrel)) (probably a hi-top, accelerator pump arm through side of bowel)( not via plunger through the top of the bowel cover al la Low top)
a V6 capri 38 DGES weber is supposed to fit ....never tried it.
engine will be 9.5:1 CR rather than then 10.1:1 that the RTs and Police cars got
think you are running Aussie mopar electronic (Email or Prestolite branded)
your alternator will be Email (Aussie prestolite licencee) or Bosch (prestolite local manufacture Bitsa this n that) (if its blue)
the fuel pump is the same as the slant 6
the dizzy is not and is Hemi 6 specific (4 mm difference in height from the body down)
Dizzy is bosch or lucas following a Bosch design for advance weights and vaccum advance
but the mopar design for the top armature the rotor arm and cap
its takes the standard slant 6/v8 magnetic pickup but the US magnetic pickup base is wrong so you need to swap and rivet a new pickup onto your old pickup base to get it to fit the advance plate
Slant 6 electronic reluctor stars can be made to fit
wiper motor is lucas
heater motor is mopar
you have BW 35 aussie style (toughend up like a taxi version Full rebuild kits from motospecs in syndey)
your tail shaft takes the same spline as the chrylser TF904
your tail shaft is longer than a 904 version
your rear trans mount is a 2 stud square mount as per 60s A body
later US abody spool and cross member can be fitted if you chock out the mount bolt with washers on the passenger side indentation
you should have the GOOD GOOD VJ VK cast iron Girlock slider Brakes at the front. these were also used on XA falcon and a number of holdens. buy pads for falcon or holden and pay 3rd of the price you would pay if you say its a Valiant, the Valiant set of pads is always the last set anywhere in Australia MATE!
hopefully not the Bananarama! Pin and Bush based VH version (also used on 65 66 mustang)
9 inch drums at the back mopar standard set up on a few US A bodys and all but the last valiants (that got finned 10 inch)
you will probably have a 2.92:1 ratio open Borg Warner Model 78 Diff
with 25 spline axles
if lucky you will have 3.23:1 ratio with Sure Grip LSD ( seperated cone based slip resistant a bit like auburn gear centre but better in repect to seperated cone. i.e can be rebuilt)
Moser can make you new axles so you can fit a 28 spline center out of a v8 holden/ gen III camaro (BTR 9 bolt).
RATECH Engineering do rebuild kits
if you want to go LSD let me know if you wnat to change ratio let me know i can assist in respect to finding parts in the UK SA and AUS
(but i keep forgetting you might be australian and therefore you will know where to get the bits and be all over M78 axles, sorry if i am teaching you to suck eggs)
hand brake cables are the same as 66 B body
axle is same width give or take 1/2 inch as a 66 B body
66 B body 8 3/4 would bolt right in excpet for tail shaft and UJ
Handbrake the same as US handbrake cables same as B body
Front and rear brake pipes are bendix.
You car uses small upper balljoints same as US A body
the lower are aussie specific BJ34 and BJ35
all other front suspension apart from idler and pitman arm are US pre 73 A body
wheel hubs and bearings are aussie speciific.
your brake booster is the same as many UK ones. i don;t have one so cant remeber if its lockheed or girling.
all trim and switches, aussie, but US swiches fit, headlamp switch is universal mopar 6?-89 just check pin numbers
internal door handles aussie
external door handles aussie
interior arm rest trims are smooth with no mock stitching
the plastics are 67 A body dart/Plymouth valiant.
Your steering box is the same as a US one in all but the orientation of the ballnut and the different case. life is easier if its manual you can't reorientate an auto box ballnut LHD to RHD. if its auto its 14.7;1 ratio if its manual ist 20:1 ratio
rear springs are Unique aussie charger length but follow the 60s US pattern in respect to hangers bushes etc (pedders/pedders UK do all the bits)
A body torsion bars fit the front
you have disk brake spindles and lower arms with the sway bar mounting
fuel sender is Aussie specific 12 volt and they were model specific in respect to year and gauge. the seal i i believe is 68 barracuda.
all other gauges aussie VDO
green gell caps for dash lights are US
Bulbs are easy.
heater is RHD
aircon is a PITA
Everything you may need is availble new or reconditioned apart from full body sections, most pot metal trim, interior plastic trims and igntion switches and some lenses.
Bosch starter motor is tooth specific to your ring gear
but its nose can be swapped onto any aussie Bosch starter
any aussie or US brake master can be made to fit if you need to, 2 to 4 bolt adpators and longer pusrod may need to be used
aussie cars used
lucas spade connectors
Mopar bullet connectors
and GM style connectors for bulkhead and various loom connectors
US stuff ususally has different wire colours and needs the aussie connectors soldered on
washer bottle is aussie specific but you can get mopar pentastar embossed US ones with motor in the same shape either manual pump or electric
battery tray, tray support and hold down can be replaced with US A body parts.
your upper suspension mounts are studded through the inner wing. if the bolts on the studs are loose your alignmnet goes all to cock. if you do them up too tight they snap.
drill through and bolt is then only option (this is aussie specific rough road upgrade over US A body)
Your oil filter will be Z9 (same as any small block or big block mopar same as Ford AFL1) or Z96 (metric PITA) Z96 mounting/coupler can be removed and replaced with the standard mopar one)
volvo 740 fit
80s landcruiser 65 75 series fit
wipers follow the british classic car model. blades, arms, blade holders (usually too short) can be had at a swap meet near you any day of the year, and some Halfrauds
Dave
Tyres
Hercules 235 70 R14 for the back on mine
and anything up to 225 for the front.
Bored at work so here goes a brain dump so you can get looking for bits you think you might need
yours has the 265 2 barrel engine using a carter BBD (Ball and Ball Dual 2 barrel)) (probably a hi-top, accelerator pump arm through side of bowel)( not via plunger through the top of the bowel cover al la Low top)
a V6 capri 38 DGES weber is supposed to fit ....never tried it.
engine will be 9.5:1 CR rather than then 10.1:1 that the RTs and Police cars got
think you are running Aussie mopar electronic (Email or Prestolite branded)
your alternator will be Email (Aussie prestolite licencee) or Bosch (prestolite local manufacture Bitsa this n that) (if its blue)
the fuel pump is the same as the slant 6
the dizzy is not and is Hemi 6 specific (4 mm difference in height from the body down)
Dizzy is bosch or lucas following a Bosch design for advance weights and vaccum advance
but the mopar design for the top armature the rotor arm and cap
its takes the standard slant 6/v8 magnetic pickup but the US magnetic pickup base is wrong so you need to swap and rivet a new pickup onto your old pickup base to get it to fit the advance plate
Slant 6 electronic reluctor stars can be made to fit
wiper motor is lucas
heater motor is mopar
you have BW 35 aussie style (toughend up like a taxi version Full rebuild kits from motospecs in syndey)
your tail shaft takes the same spline as the chrylser TF904
your tail shaft is longer than a 904 version
your rear trans mount is a 2 stud square mount as per 60s A body
later US abody spool and cross member can be fitted if you chock out the mount bolt with washers on the passenger side indentation
you should have the GOOD GOOD VJ VK cast iron Girlock slider Brakes at the front. these were also used on XA falcon and a number of holdens. buy pads for falcon or holden and pay 3rd of the price you would pay if you say its a Valiant, the Valiant set of pads is always the last set anywhere in Australia MATE!
hopefully not the Bananarama! Pin and Bush based VH version (also used on 65 66 mustang)
9 inch drums at the back mopar standard set up on a few US A bodys and all but the last valiants (that got finned 10 inch)
you will probably have a 2.92:1 ratio open Borg Warner Model 78 Diff
with 25 spline axles
if lucky you will have 3.23:1 ratio with Sure Grip LSD ( seperated cone based slip resistant a bit like auburn gear centre but better in repect to seperated cone. i.e can be rebuilt)
Moser can make you new axles so you can fit a 28 spline center out of a v8 holden/ gen III camaro (BTR 9 bolt).
RATECH Engineering do rebuild kits
if you want to go LSD let me know if you wnat to change ratio let me know i can assist in respect to finding parts in the UK SA and AUS
(but i keep forgetting you might be australian and therefore you will know where to get the bits and be all over M78 axles, sorry if i am teaching you to suck eggs)
hand brake cables are the same as 66 B body
axle is same width give or take 1/2 inch as a 66 B body
66 B body 8 3/4 would bolt right in excpet for tail shaft and UJ
Handbrake the same as US handbrake cables same as B body
Front and rear brake pipes are bendix.
You car uses small upper balljoints same as US A body
the lower are aussie specific BJ34 and BJ35
all other front suspension apart from idler and pitman arm are US pre 73 A body
wheel hubs and bearings are aussie speciific.
your brake booster is the same as many UK ones. i don;t have one so cant remeber if its lockheed or girling.
all trim and switches, aussie, but US swiches fit, headlamp switch is universal mopar 6?-89 just check pin numbers
internal door handles aussie
external door handles aussie
interior arm rest trims are smooth with no mock stitching
the plastics are 67 A body dart/Plymouth valiant.
Your steering box is the same as a US one in all but the orientation of the ballnut and the different case. life is easier if its manual you can't reorientate an auto box ballnut LHD to RHD. if its auto its 14.7;1 ratio if its manual ist 20:1 ratio
rear springs are Unique aussie charger length but follow the 60s US pattern in respect to hangers bushes etc (pedders/pedders UK do all the bits)
A body torsion bars fit the front
you have disk brake spindles and lower arms with the sway bar mounting
fuel sender is Aussie specific 12 volt and they were model specific in respect to year and gauge. the seal i i believe is 68 barracuda.
all other gauges aussie VDO
green gell caps for dash lights are US
Bulbs are easy.
heater is RHD
aircon is a PITA
Everything you may need is availble new or reconditioned apart from full body sections, most pot metal trim, interior plastic trims and igntion switches and some lenses.
Bosch starter motor is tooth specific to your ring gear
but its nose can be swapped onto any aussie Bosch starter
any aussie or US brake master can be made to fit if you need to, 2 to 4 bolt adpators and longer pusrod may need to be used
aussie cars used
lucas spade connectors
Mopar bullet connectors
and GM style connectors for bulkhead and various loom connectors
US stuff ususally has different wire colours and needs the aussie connectors soldered on
washer bottle is aussie specific but you can get mopar pentastar embossed US ones with motor in the same shape either manual pump or electric
battery tray, tray support and hold down can be replaced with US A body parts.
your upper suspension mounts are studded through the inner wing. if the bolts on the studs are loose your alignmnet goes all to cock. if you do them up too tight they snap.
drill through and bolt is then only option (this is aussie specific rough road upgrade over US A body)
Your oil filter will be Z9 (same as any small block or big block mopar same as Ford AFL1) or Z96 (metric PITA) Z96 mounting/coupler can be removed and replaced with the standard mopar one)
volvo 740 fit
80s landcruiser 65 75 series fit
wipers follow the british classic car model. blades, arms, blade holders (usually too short) can be had at a swap meet near you any day of the year, and some Halfrauds
Dave
The Greater Knapweed near the Mugwort by the Buckthorn tree is dying
