Floyd Brothers 70 Challenger
Moderator: Moderators
- Stu
- Posts: 6936
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Floyd Brothers 70 Challenger
Fair do’s. They came in one box and look identical on the face of it. I’ll see what tomorrow brings for a mock up if I can make some time to get to it.
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
Re: Floyd Brothers 70 Challenger
Yea the bolt pattern looks equal but is isn’t.
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
- Stu
- Posts: 6936
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Floyd Brothers 70 Challenger

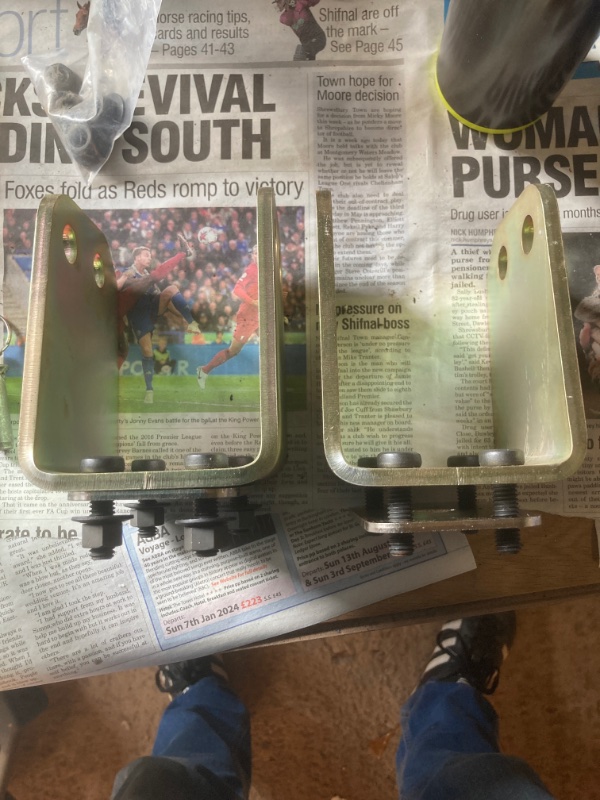

From the looks of the Mancini image, the rounded corners are at the top and the angled corners at the bottom.
No installation instructions though.
No installation instructions though.
- Attachments
-
- IMG_9567.jpeg (78 KiB) Viewed 14823 times
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
- Stu
- Posts: 6936
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Floyd Brothers 70 Challenger
FFS!

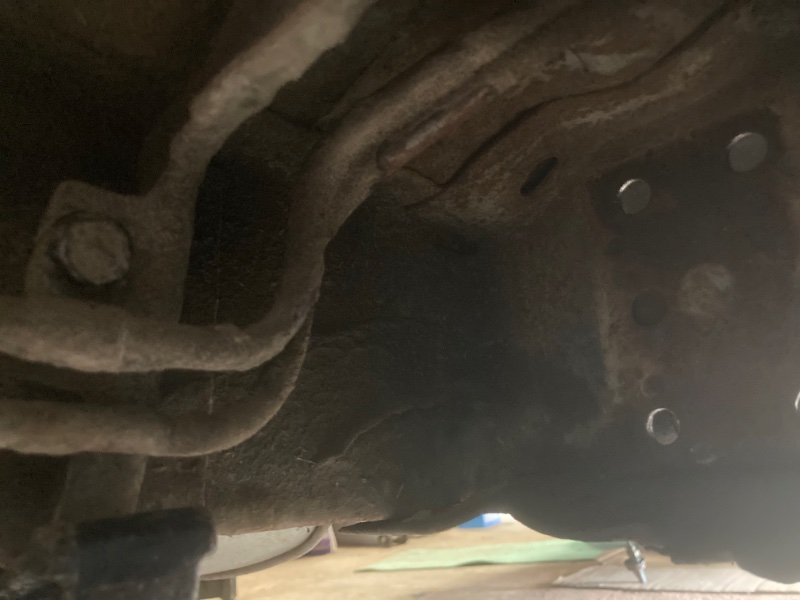

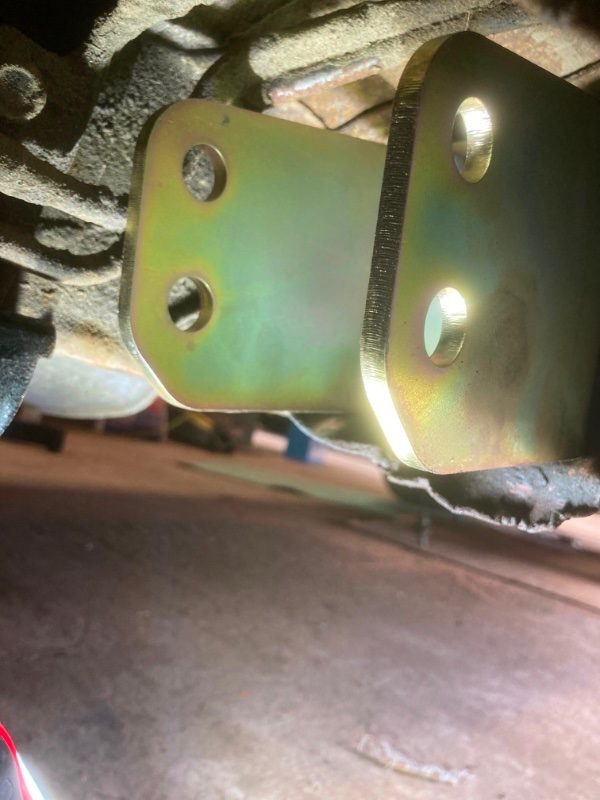

Well, you are absolutely correct, the front hangers are a different hole distance at the top, so happy days, passenger side spring out and quick mock up check. Only to find it won’t go on, as it fouls the pipes…
Well, you are absolutely correct, the front hangers are a different hole distance at the top, so happy days, passenger side spring out and quick mock up check. Only to find it won’t go on, as it fouls the pipes…
- Attachments
-
- IMG_9570.jpeg (120.56 KiB) Viewed 14801 times
-
- IMG_9571.jpeg (143.88 KiB) Viewed 14801 times
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
Re: Floyd Brothers 70 Challenger
Just carefully bend the pipes out of the way, normal sort of thing you come across when fitting anything aftermarket.
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
- Stu
- Posts: 6936
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Floyd Brothers 70 Challenger
Did look at that, but don’t think I can, they go right across where the hanger should sit.
Had to go and do family stuff, so that is now until after Dragstalgia.
Had to go and do family stuff, so that is now until after Dragstalgia.
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
Re: Floyd Brothers 70 Challenger
The Superstock Hangers I fitted to the 'Cuda foul worse than that.
I just carefully bent the pipes out of the way for some additional clearance Clarence....
I just carefully bent the pipes out of the way for some additional clearance Clarence....
Pete Wiseman; Cambridge.
Mopar by the grace of God
Mopar by the grace of God
Re: Floyd Brothers 70 Challenger
Remember the bolt goes into the Hanger and Spring from the INSIDE. This is a safety measure in the event that you loose the Nut, it keeps the Bolt captive to prevent a catastrophic failure......
Pete Wiseman; Cambridge.
Mopar by the grace of God
Mopar by the grace of God
- Stu
- Posts: 6936
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Floyd Brothers 70 Challenger
Cheers Pete. Yes, I made a note of which way it came off, as the bolt was effectively captive against the rail.
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
- Stu
- Posts: 6936
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Floyd Brothers 70 Challenger
First I’ve managed to get to the car since before Dragstalgia, so back on the rear springs again.

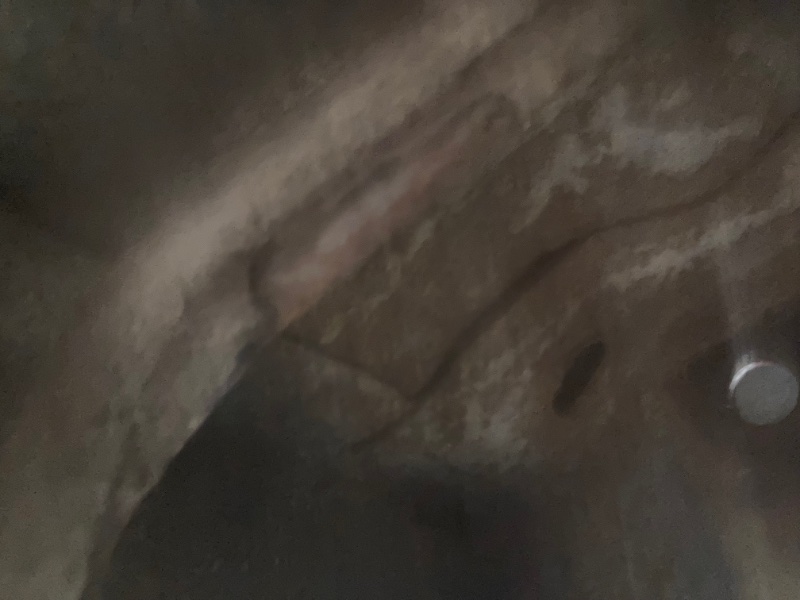

Before I go and snap or rupture pipes, this is what I’m looking at. I’ve gently prised at these and they are not going anywhere from what I can feel, not sure how I’m meant to bend these out of the way? You can also see where the old hanger was clearly up against one of the pipes, where it’s not covered in nearly as much grot as the rest of it.
Still can’t quite see how you tell the difference in the sides for the front hangers either, they look identical to me!
Before I go and snap or rupture pipes, this is what I’m looking at. I’ve gently prised at these and they are not going anywhere from what I can feel, not sure how I’m meant to bend these out of the way? You can also see where the old hanger was clearly up against one of the pipes, where it’s not covered in nearly as much grot as the rest of it.
Still can’t quite see how you tell the difference in the sides for the front hangers either, they look identical to me!
- Attachments
-
- IMG_9647.jpeg (105.79 KiB) Viewed 14660 times
-
- IMG_9648.jpeg (99.97 KiB) Viewed 14660 times
-
- image.jpg (169.4 KiB) Viewed 14660 times
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
Re: Floyd Brothers 70 Challenger
Undo the pipe retaining clip and see if you can get more movement.
Pete Wiseman; Cambridge.
Mopar by the grace of God
Mopar by the grace of God
- Stu
- Posts: 6936
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Floyd Brothers 70 Challenger
Been trying to do that, but it’s rounder than Big Jack McRound at a Round Convention.
24 hours in a day, 24 beers in a case. Coincidence? I think not…
70 Challenger
MMA/489
NSS/435
70 Challenger
MMA/489
NSS/435
Re: Floyd Brothers 70 Challenger
Options:
Hammer a 6 point Metric equivalent socket on the retaining bolt and hope for the best, understanding that you may wring its neck (not all bad...).
Use something like a wooden handle to try to bend the pipes out of the way for clearance.
Notch the Hanger Bracket for clearance - there is plenty of meat on those.
Bite the bullet and rip the pipes out and re-pipe....
Go to the Pub....
Hammer a 6 point Metric equivalent socket on the retaining bolt and hope for the best, understanding that you may wring its neck (not all bad...).
Use something like a wooden handle to try to bend the pipes out of the way for clearance.
Notch the Hanger Bracket for clearance - there is plenty of meat on those.
Bite the bullet and rip the pipes out and re-pipe....
Go to the Pub....
Pete Wiseman; Cambridge.
Mopar by the grace of God
Mopar by the grace of God
Re: Floyd Brothers 70 Challenger
Can you grind the bolt head away to release the pipes? Bit of wood against the pipes and carefully tap them out of the way with a hammer.
“This ain’t no party, this ain’t no disco, this ain’t no foolin’ around”
- Stu
- Posts: 6936
- Joined: Sun Jul 31, 05 4:15 pm
- Location: Shropshire, home of the worlds smallest big screen TV
Re: Floyd Brothers 70 Challenger
Was planning to redo the fuel lines anyway, just not yet.
Wish I’d managed to empty the tank before I started now…
In the meantime, I am just deciding whether to laugh or cry at the fact that the rear shocks were only finger tight at the top…
Wish I’d managed to empty the tank before I started now…
In the meantime, I am just deciding whether to laugh or cry at the fact that the rear shocks were only finger tight at the top…
