Removing Door Mirror Glass?
Moderator: Moderators
Removing Door Mirror Glass?
Has anyone got any tips on how to remove/replace the glass in door mirrors?
Don't want to break it out if there is a better way.
Don't want to break it out if there is a better way.
- autofetish
- Posts: 5599
- Joined: Sat May 21, 11 6:43 am
is it bonded in or is it popped in?
mine is popped in
the glass is too small for the shell lip by about 1/2 mm
it has a plastic surround that is bigger than the lip of the shell on its outer profile and smaller than the glass in its inner profile
i push the glass back against the spring which takes it out of the inner profile of its plastic frame which usually stays in place round the inside of the shell opening
twist out the plastic frame
and the glass is free to come out
the plastic however gets brittle and nobody makes em anymore
the spring inisde provides pressure to keep glass in at one end and pressure on the ball and socket for the mount onto the mirror stem at the other
mine is an aussie mirror.
to re assemble glas in first
forec in frame
jiggle about for hours until its fits
Dave
mine is popped in
the glass is too small for the shell lip by about 1/2 mm
it has a plastic surround that is bigger than the lip of the shell on its outer profile and smaller than the glass in its inner profile
i push the glass back against the spring which takes it out of the inner profile of its plastic frame which usually stays in place round the inside of the shell opening
twist out the plastic frame
and the glass is free to come out
the plastic however gets brittle and nobody makes em anymore
the spring inisde provides pressure to keep glass in at one end and pressure on the ball and socket for the mount onto the mirror stem at the other
mine is an aussie mirror.
to re assemble glas in first
forec in frame
jiggle about for hours until its fits
Dave
The Greater Knapweed near the Mugwort by the Buckthorn tree is dying
Have you tried some oribital buffing complete with a very light cutting compound!Bilko wrote:It's both mirrors Dave. Not broken but glass but is 'cloudy' for some reason. I think new glass over old might be the way to go.Dave wrote:It's bonded. If it is the drivers side remote adjustable one that's broken you have your work cut out.
I'm sure I've seen someone do this on a mirror and it removes clouding!!?
Dave Tildesley.....MMA-081
72 Dodge Dart
73 Plymouth Duster - SOLD
I wanna go so FAST i think i'm going to DIE!..........Then i'll shift into second!
"My Car is a work in progress, Probably never gonna get finished, never gonna have the money to Bananarama!!"
72 Dodge Dart
73 Plymouth Duster - SOLD
I wanna go so FAST i think i'm going to DIE!..........Then i'll shift into second!
"My Car is a work in progress, Probably never gonna get finished, never gonna have the money to Bananarama!!"
Have your tried white vinegar and scrunched up newspaper first...........?Dave81 wrote:Have you tried some oribital buffing complete with a very light cutting compound!Bilko wrote:It's both mirrors Dave. Not broken but glass but is 'cloudy' for some reason. I think new glass over old might be the way to go.Dave wrote:It's bonded. If it is the drivers side remote adjustable one that's broken you have your work cut out.
I'm sure I've seen someone do this on a mirror and it removes clouding!!?
Dave Tildesley.....MMA-081
72 Dodge Dart
73 Plymouth Duster - SOLD
I wanna go so FAST i think i'm going to DIE!..........Then i'll shift into second!
"My Car is a work in progress, Probably never gonna get finished, never gonna have the money to Bananarama!!"
72 Dodge Dart
73 Plymouth Duster - SOLD
I wanna go so FAST i think i'm going to DIE!..........Then i'll shift into second!
"My Car is a work in progress, Probably never gonna get finished, never gonna have the money to Bananarama!!"
- Dave-R
- Posts: 24751
- Joined: Sun Apr 18, 04 11:23 pm
- Location: Dave Robson lives in Geordieland
- Contact:
If it is on the surface of the glass it will polish off. I would get the brasso out.Bilko wrote:It's both mirrors Dave. Not broken but glass but is 'cloudy' for some reason. I think new glass over old might be the way to go.Dave wrote:It's bonded. If it is the drivers side remote adjustable one that's broken you have your work cut out.
But if it is the silvering on the reverse oxidising then new glass is the only way to go.
Heat is usually recommended when I've seen this question asked. I did my passenger side with a heat gun OK with this method. But I couldn't do the drivers side, in the end I broke the glass to get it out. But if it's knackered I guess that shouldn't really be an issue.
The glass is held on to the metal backing plate with four spots of black adhesive. Trouble is the metal has a lip all around the edge which makes it VERY difficult to get something underneath it, like a flat blade or a wire to cut the adhesive (like when doing a windscreen). I tried that with limited success
Personally I wouldn't bond new over the old glass - honestly I think it would look a bit naff.
The glass is held on to the metal backing plate with four spots of black adhesive. Trouble is the metal has a lip all around the edge which makes it VERY difficult to get something underneath it, like a flat blade or a wire to cut the adhesive (like when doing a windscreen). I tried that with limited success
Personally I wouldn't bond new over the old glass - honestly I think it would look a bit naff.
Gavin Chisholm - 414ci W2 Stroker SmallBlock Panther Pink '71 Challenger convertible - in bits
Car progress can be viewed here
Car progress can be viewed here
As Dave 81 said. Buffing the glass with cutting compound and an orbital /DA will bring it up a treat.Bilko wrote:I've given the glass a good clean and it's a bit better so might leave it be. Loads of micro scratches but these can't be see from a distance.
My plastic lenses on the Jeep were cloudy. My brother buffed them to like new !
It's all about Smiles per gallon !!!
68 Coronet sedan 500 4 door
Dodge Ram SRT 10
MMA-013
68 Coronet sedan 500 4 door
Dodge Ram SRT 10
MMA-013

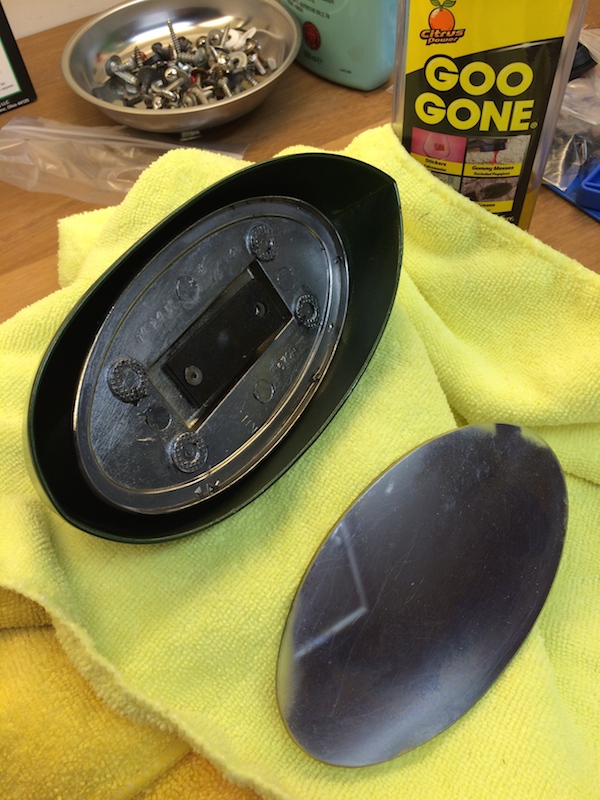

Decided to try something I read online and soaked the mirror in Goo Gone and left overnight. Had a look tonight and the glass popped out easily in one piece! Straightforward swap for new glass now as the silvering has gone on the old one and I can now tighten up the mirror as it had become 'floppy'.
- Attachments
-
- IMG_3586.jpg (238.4 KiB) Viewed 980 times
